3d Stone cnc router machine for carving and cutting for marble tombstone
3d Stone cnc router machine for carving and cutting for marble tombstone
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
MCQJ-400
Certification :
CE,ISO,ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic FIlm
Voltage :
380V/50Hz
Weight :
2000KG
Use :
Granite,Marble,granite and marble
Condition :
New
Dimension(l*w*h) :
5800*4700*2700 mm
After-sales service provided :
Engineers available to service machinery overseas,Online support
Type :
Stone Cutting Machine,Bridge Style 5 Axis Waterjet Cutting Machine
Warranty :
One Year
Control system :
PLC SYSTEM
Product name :
stone cutting machine
Color :
customized
Application :
Stone Industrial
Name :
stone cutting machine
Blade diameter :
400-625mm
Function :
STONE CUTTING
Keyword :
Stone cutting machine,CNC Marble Cutting Machine
Description

3d Stone cnc router machine for carving and cutting for marble tombstone

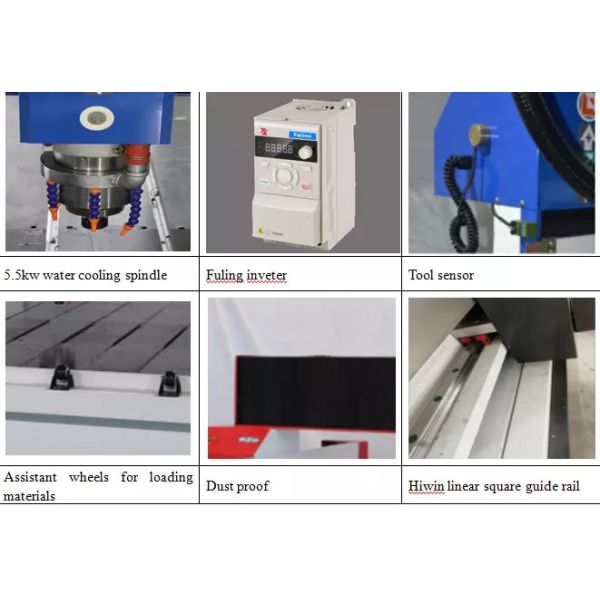

Machine Features

1. Adopt Taiwan Hiwin square rails, double-row four colums slide block, high precision, huge bearing capacity, good moving
stability and tools falling accuracy.

2. Whole machine welded with thickess steel tubes, not easy to be deformed. Working table backed with steel plate, bearing
capacity more than1ton

3. Constant power spindle motor, big cutting intensity and high efficiency.

4. Dust proof and water proof design protects the transmission components.

5. Equipped with water tank and automatic water cooling system.
Specification
Effective working area
(X=1300mm)*(Y=2500mm)
Max Feeding Height
400mm
Machine Body
8mm thickness welded steel tube, cast iron vertical shafts and steel gantry
Working table
Aluminum T-slot table with PVC
Guide rail
Hiwin linear square guide rail
Driving method
Taiwan Gears Rack drive for X Y-axis,lead screw drive for z-axis
Motor and driver
Stepper motor(450B) and Leadshine driver(MA860H)
Spindle Motor
5.5KW water cooling spindle
Invert
Fuling invert
Spindle collect type
ER25
Voltage
AC220V, 1 phase/3phase, 50-60Hz
Control system
Mach 3 USB control system
Control Cabinet
Independent
Other
Water tank(Bidirectional cooling system)

3d Stone cnc router machine for carving and cutting for marble tombstone3d Stone cnc router machine for carving and cutting for marble tombstone3d Stone cnc router machine for carving and cutting for marble tombstone3d Stone cnc router machine for carving and cutting for marble tombstone3d Stone cnc router machine for carving and cutting for marble tombstone3d Stone cnc router machine for carving and cutting for marble tombstone
