Specifications
Model Number :
AR-CL
Place of Origin :
China
Brand Name :
ACERACK
Certification :
Fem, As4084
MOQ :
500pcs
Price :
5USD
Packaging Details :
Standard Export Package
Delivery Time :
15days
Payment Terms :
TT/LC
Supply Ability :
5000T/month
Surface Treatment: :
Powder Coating/Galvanized/Hot Dip Galv
Color :
BLUE,YELLOW,WHITE AS REQUIRED
Material :
235B/D Steel And Also Q355B/D.High Strength Steel
Name :
Carton Flow Rack
Loading :
over 500KG
HS Code :
73089000
Thickness :
2-3mm
Description

Warehouse storage Industrial Rolling Steel Shelving Gravity Rack Carton flow Racking System

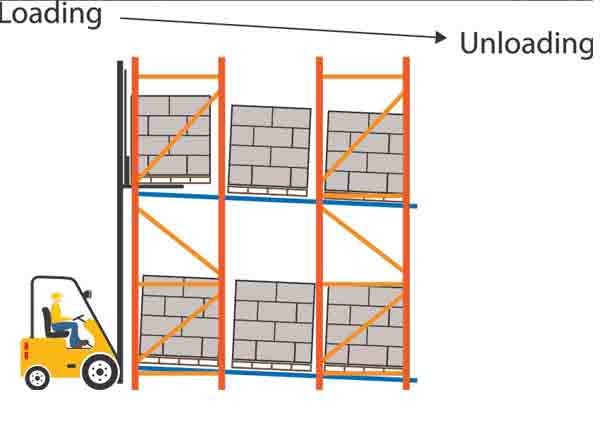

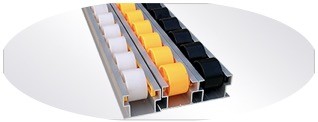

Carton flow rack also known as roller rack, works in the same way as pallet live storage, but is used for stock that is loaded and picked by hand. The carton flow rack equipped with sloping (2.5°-3°) aluminium or metal roller system can realize first-in-first-out working mode. Cargo can slide down automatically from one side to another side by its gravity. Enhance the storage location management efficiency. Plastic box, parts box and carton box are the normal sliding container.

Gravity Rack Carton Flow Racking System Industrial Rolling Steel ShelvingGravity Rack Carton Flow Racking System Industrial Rolling Steel Shelving

Gravity Rack Carton Flow Racking System Industrial Rolling Steel ShelvingGravity Rack Carton Flow Racking System Industrial Rolling Steel Shelving

Features 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility
Beam & Frame 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components
Load Capacity & Dimension 1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.
Delivery Time Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery.

Packaging & Shipping

To suit different clients needs,Acerack use different storage method.Following are rules followed.

For container order: stretch film+carton board+packing belt+plywood stick+plywood pallet leg

For less than container order:plywood box or other that can keep the product safe during transportation
