Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System
Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System
Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System
Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System
Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System
Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System
Specifications
Brand Name :
Acerack
Model Number :
AR-SP3
Certification :
RMI / AS4084-2012 / CE / ISO9001/SEMA
Place of Origin :
China
MOQ :
20
Price :
8usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6300T/Month
Delivery Time :
15-35days
Packaging Details :
Standard package
color :
BLUE /YELLOW/ORANGE/AS REQUIRED
Load Capacity: :
400kgs~5000kgs/Layer, 4000kgs~30000kgs/Bay
Material :
Q235B Q355B/D/SS400
Surface Treatment:: :
Powder Coating /Galvanized/Hot Dip Galvanized
Name :
Warehouse Pallet Racking
Description

High quality practical crate steel pallet rack protector pallet racking

Heavy Duty Warehouse storage Racking System Dexion Style Pallet rack Shelves

Pallet racking systems provide a direct access to all pallets, and is the most economical choice in terms of cost. It is composed of upright frames and beams. 100% Dexion compatiable pallet rack with detail drawing.

Pallet rack are the most popular, functional racking in the industry. As the best solution for warehouse systems with palletized products, they store a wide variety of goods.

We're specialized in design and production of Pallet Racking and Shelving System, as well as Cantilever Rack, Mezzanine Platform, Radio Shuttle System, ASRS, Wire mesh deck etc.

Ace Storage Equipment Manufacturer has specialized in warehouse racks for more than 16 years, with annual sales of more than 50 million US dollars, of which heavy duty pallet racks account for a large part. We have Stable products, reasonable prices and good service . You can trust us, We are a leading racking manufacturer in China.We has specialized in producing racks for more than 17 years, with annual sales of more than 50 million US dollars, of which heavy duty pallet racks account for a large part. We have Stable products, reasonable prices and good service . You can trust us, We are a leading racking manufacturer in China.

Name
Pallet Rack
Size
Customized Size
Material
Steel
Depth/Width/Height
Customized
Color
Customized
Weight Capacity
500~5000kg
Certification
AS4084-2012 / CE / ISO / RMI
Pitch holes
50.8mm 75mm,76.2mm
Surface finish
Powder Coated
Usage
Warehouse Storage System
Application
Widely Used
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available

Acerack Storage racking detailed introduction:

Features 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck

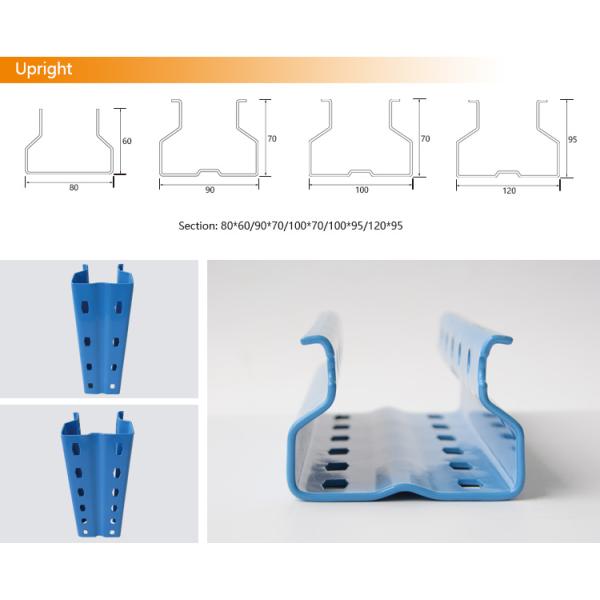

Main Parts Specs 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.

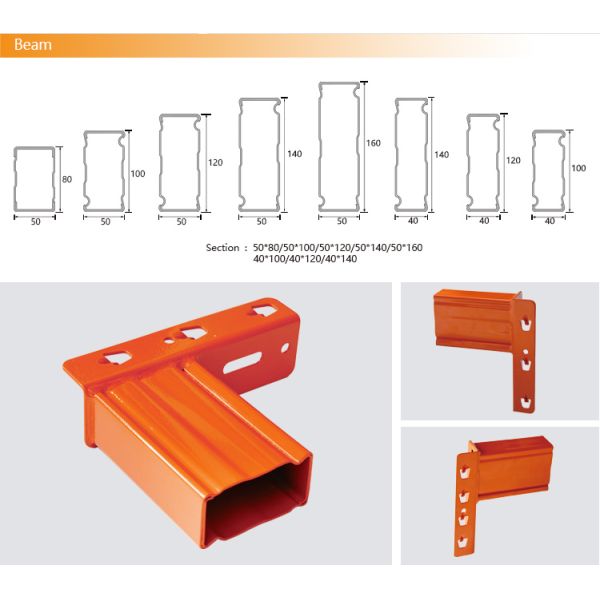

2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.

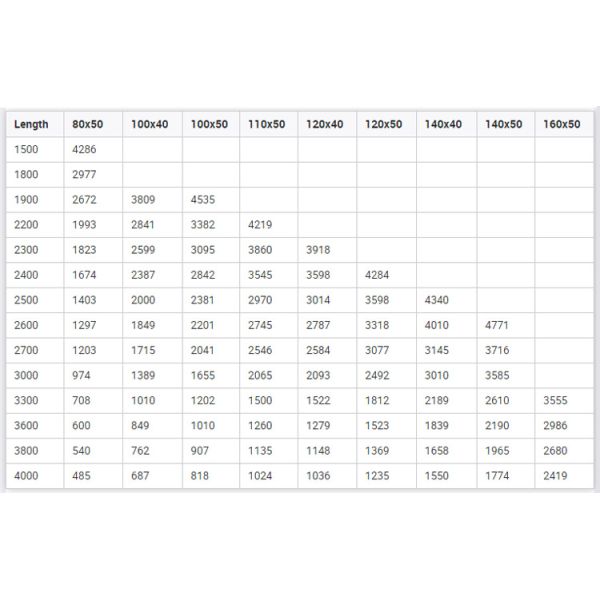

Load Capacity & Dimension 1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.n to make quick delivery.

Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System

Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System

Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System

Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System

Packaging & Shipping

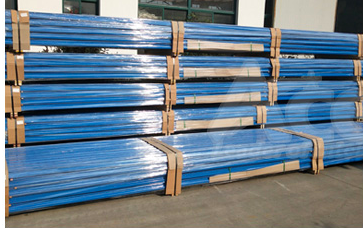

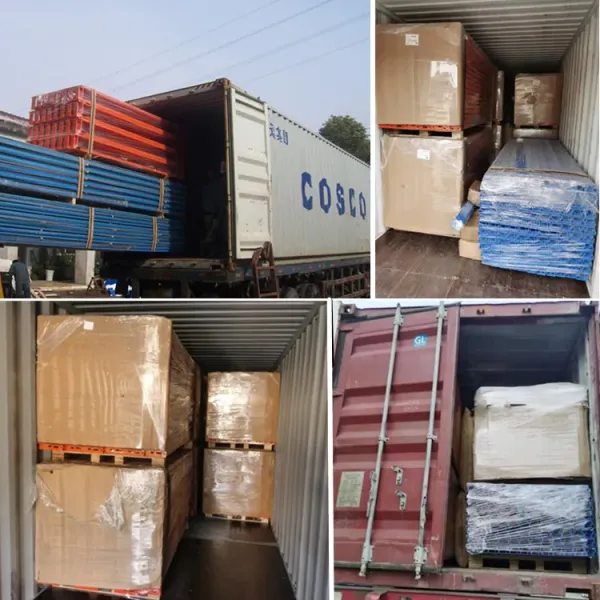

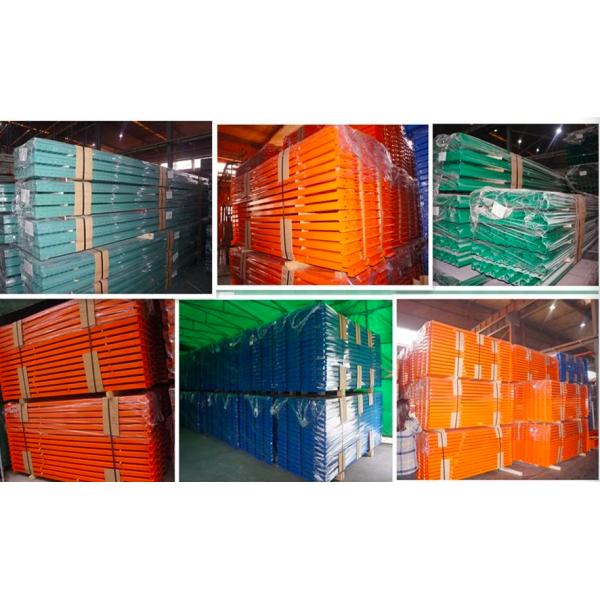

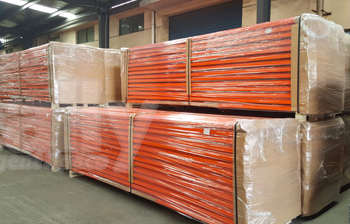

Standard export package by pallet and covered by plastic film:

Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System

Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking SystemHeavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System

Heavy Duty Warehouse Storage Rack Dexion Style Pallet Racking System

1. Q: Why choose us?
A: Professional design team, adequate production capacity, comply with AS4084. RMI and FEM standard.


2. Q: What is the material on your products?
A: The material normally use is Q235B/D steel and also Q355B/D.


3. Q: What is the packaging of the products?
A: Standard export package by pallet and covered by plastic film.


4. Q: What is the MOQ can order?
A: Normally is one 20ft container, small quantities are also available.

5. Q: What is the payment terms?
A: We accept TT or L/C etc.

6. Q: What is your delivery time?
A: Normally is 2-4 weeks after receipt of the deposit.

7. Q: Are samples available?

A: Yes, we can send some sections of samples for your reference by express.
