4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W
Specifications
Brand Name :
Inspur
Model Number :
Inspur NF5260FM6
Place of Origin :
China
MOQ :
1
Price :
$1890-3560 pcs Negotiable
Payment Terms :
T/T
Supply Ability :
50/pcs/week
Delivery Time :
5-8 working days
Packaging Details :
Carton Packaging
Form Factor :
2U Rack
Processor :
2 x Intel® Xeon® Ice Lake scalable processors
Memory :
32 x memory slots, up to DDR4-3200, up to 16 x Intel® OptaneTM PMem
Storage :
8 x 2.5-inch SAS/SATA/NVMe SSDs (6 of them support NVMe SSDs).
Working Temperature :
5℃-45℃. Refer to the Technical White Paper.
PSU :
1+1 redundancy power supplies, 550W/800W/1300W, centralized power supply
Description

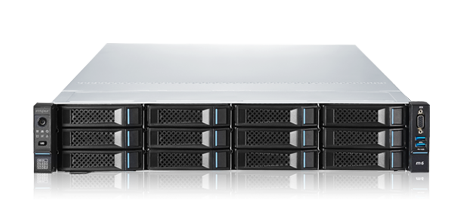

Inspur NF5260M6/FM6 server 4309Y/32GB DDR4/4TB SATA/PM8222/4Port 1Gbe/550W 2U 2-Socket Server with Flexible I/O

NF5260M6/FM6

NF5260M6/FM6 is Inspur's first dual-socket server that supports on-demand front and rear I/O. With a flexible and modular design that can respond to various Internet applications, it is an ideal choice for data centers.

Features

  • Flexible I/O design: It has no onboard PCIe slot and can satisfy non-PCIe I/O customization. The motherboard supports up to 2 x hot-pluggable OCPs, freeing up more I/O resources while ensuring uninterrupted network services.

  • Ultimate architecture design: Unique front I/O design proposes innovative measures to isolate the cold and hot aisles in the data center, which increases the lifecycle of heat-sensitive components, facilitates maintenance, and effectively solves the wiring problem in the data center.

  • Flexible deployment mode: Centralized power supply modules and CRPS power supplies can be switched freely. Support the stand-alone node and rack-scale delivery and ensure worry-free deployment.

  • Innovative cooling scheme: The liquid cooling solution reduces PUE in the data center to the limit. There are two different cooling solutions: air cooling or liquid cooling, choose as needed.

Technical Specifications

Model

NF5260M6

NF5260FM6

Processor

2 x Intel® Xeon® Ice Lake scalable processors

Memory

32 x memory slots, up to DDR4-3200, up to 16 x Intel® OptaneTM PMem

Storage

Front:

Front:

12 x 3.5-inch SAS/SATA/NVMe SDDs, Up to 12 x NVMe SDDs

7 x 3.5-inch SATA/SAS/SSDs + 2 x NVMe SSDs;

24 x 2.5-inch SAS/SATA/NVMe SSDs (16 of them support NVMe SSDs);

16 x 2.5-inch SATA/SAS/NVMe SSDs;

No HDD.

14 x 2.5-inch SATA/SAS/SSD+2*NVMe SSDs;

Rear:

8 x 2.5-inch SAS/SATA/NVMe SSDs (6 of them support NVMe SSDs).

4 x 2.5-inch SAS/SATA/NVMe SSDs

Built-in

Built-in:

2 x M.2 SSDs

2 x M.2 SSDs

　

I/O Expansion

Internal RAID controller card

Front I/O:

Rear I/O:

1 x OCP3.0 + 2 x PCIe x8 +1 x PCIe x16 for 9 x 3.5-inch

2 x OCP3.0 + 4 x PCIe x16

1 x OCP3.0 + 2 x PCIe x8 +1 x PCIe x16 for 16 x 2.5-inch

1 x OCP3.0 + 2 x PCIe x16 + 1 x PCIe x8

1 x OCP3.0 + 4 x PCIe x16 + 2 x PCIe x8 for 8 x 2.5-inch

4 x PCIe x16 + 2 x PCIe x8

Front I/O:
2 x built-in riser cards: x8 x 2 + x16 x1

PSU

1+1 redundancy power supplies, 550W/800W/1300W, centralized power supply

Working Temperature

5℃-45℃. Refer to the Technical White Paper.

4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W

4309Y 32GB DDR4 Rack Storage Server 4TB SATA PM8222 4 Port 1Gbe 550W

Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 3 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
