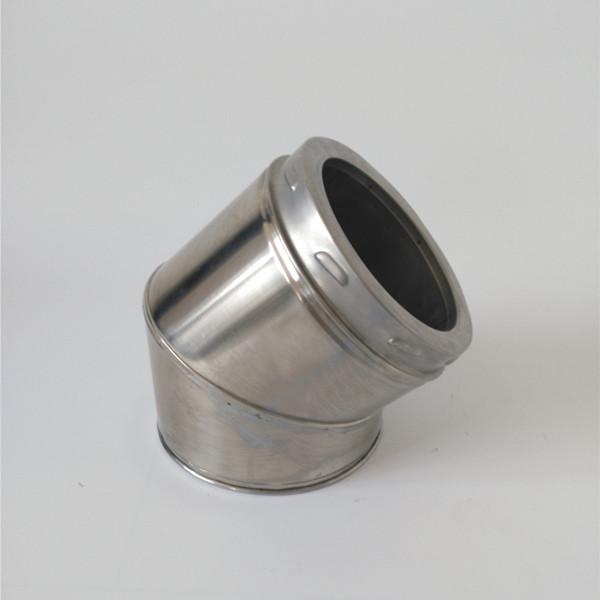

Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System
Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System
Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System
Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System
Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System
Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System
Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System
Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System
Specifications
Brand Name :
Ruilun
Model Number :
DWT
Certification :
CE & ISO9001
Place of Origin :
Suzhou, China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T, D/A
Supply Ability :
5000 pcs/ Week
Delivery Time :
10-18 working days
Packaging Details :
Cartons and Then packed into pallets
Product Name :
Twin Wall 6 Inch Insulated 45 Degree Bend
Material :
Stainless 304(1.4301) / 316L (1.4404)
Size :
6'' ( ID150mm/OD200mm)
Thickness :
0.5 mm
Packing :
Cartons and pallets loading
Color :
stainless pure silver color or can be black paint
Standard :
EN1856-1 / ISO9001
Style of Connection :
Twist lock systems with socket locking band
Description

Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System

Introduction:

The Ruilun Twin wall insulated twist lock chimney systems designed to meet the requirements for multi-fuel that operate under negative

conditions. The systems with a specific range of components and use twist-lock teeth to lock each other properly. The systems are CE approved

by Famous Italy Kiwa test lab under EN1856-1.

The twin-wall twist-lock chimneys is a factory-made and prefabricated double-wall insulated stainless steel chimney systems. Flues are full

welding with high performance.

This special design and construction provide high thermal resistance the test temperature reaches 1100 °C and the normal use can under

600 °C continuous.

1. Production Description:

Product Name: Twin Wall 6 Inch Insulated 45 Degree Bend
Series: Double Wall insulated with Twist Locking
Material: Stainless 304(1.4301) / 316L (1.4404)
Color: This system is shiny stainless silver color
Size: 5'' (ID125mm/OD175mm) & 6'' ( ID150mm/OD200mm)
Thickness: 0.5mm (+/-0.04mm) suit for National steel standard
Insulation: High-density ceramic fibers insulation
Certificate: CE, ISO9001
Packing size: Depend on the product's size
Weight: 0.5KG-4KG
Application: Wood fireplaces, Pellet stove, Fireplaces, Boiler, Generator, Wood Heater

2. Related products pictures:

Twin Wall 6 Inch Twist Lock Insulated 45 Degree Bend For Fireplace Chimney System

3. Packing and Delivery:

Packing details: Products packed with plastic bags and then into carton then packed into pallets.

Loading port: Shanghai Or Ningbo

Lead Time: 28 working days after confirming the order

4. Why Choose us?

(1) We are the manufacturer and supply OEM/ODM. Based on the customer's requirements and need.

(2) We are professional metal products and chimney systems which have more than 10 years of abundant experience in this industry.

(3) We always help customers solve the problems and insist on a win-win philosophy.

5. FAQ:

(1) Are you the trading company or the manufacturer?

We are the Manufacturer

(2) What are your payment terms?

T/T: 30% TT deposit and 70% TT balance See B/L loading or Before shipping

(3) How long is your lead time?

20 days after received the deposit.
