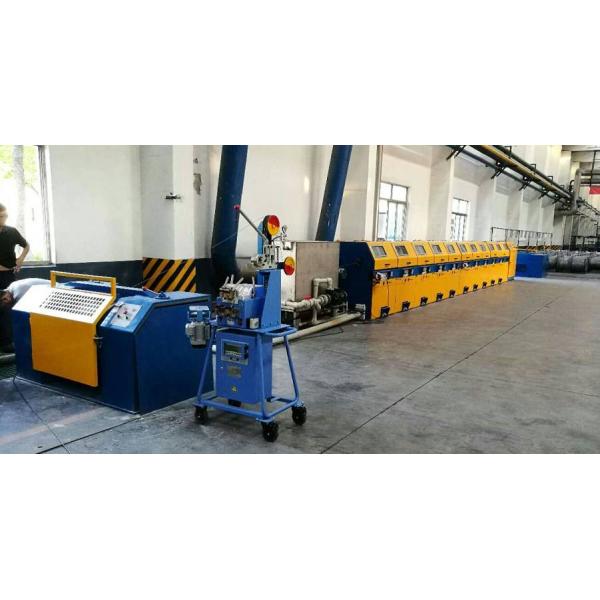

Double Inverter control Straight Line Wire Drawing Machine with fully automatic

This metal wire drawing mechine device is uesd to draw vrious kinds of steel wire, welding wire and other metal wire materials.

Electrical:

①The basic function in wire drawing machine is complete; Single machine is punctual, leftist writers point move, single point, leftist writers (right) running, stop; Tuning roller tension adjustment, mould box and roll cooling water regulation.

② the work station complete: total rev, stop, stop, acceleration, deceleration,

fault indicator, the meter reset

③Touch screen to finish: mold fitting

(wire), speed setting, the length of the set (fixed-

length automatic parking), jump die set, inching

speed setting, fault, according to the actual running speed display, lighting switch

Pre-sale training:

in order to guarantee the customers are able fully to operate the machine,if the customer need,

we can help customer training,includes:

1. correct operationg mode;

2. correct maintenance way;

3. remove simple problem;

our company for our machine product,since the shipment date,our company free after-sale

maintenance service guarantee period is:

1.1 year for mechanical part;

2.6 months for electrical part;

Main technical parameter and points:

(1) Inlet strength: ≦600 MPa

1. Max inlet dia: Ф6.5mm
2. Min wire outlet dia: Ф1.5mm

(4) Max compression rate:87%

(5) Max drawing speed:20m/s Normal drawing speed:18m/s

(6) Water consumption and pressure:5m3/h water pressure≥0.25MPa

(7) Air consumption and pressure:1.0m3/h air pressure≥0.6MPa

(8) Motor:

① Main motor:30KW*1+22KW*5 AC motor

② Wire take-up machine:15KW AC motor

(9) Drawing drum: Drum diameter Ф560mm,material:ZG45 steel,spray

tungsten carbide hard alloy powder on the working surface, thickness 1mm,height:60mm , Drum as a direct contact with the steel wire core components, its manufacturing technology also be especially fastidious. My company reel overall beautiful sex and rigidity is higher; After tempering treatment after rough machining, in order to improve the overall and mechanical properties of the drum; Drum face by surfacing welding wear-resisting carbide processing, and then after grinding machinegrinding refined but become, within the drum surface processing has spiral u-shapeslot. Its cooling principle is through the drum and the relative rotary motion of the water jacket cooling water jacket of the lateral oblique rib to squeeze into the top, the inside of the drum helical will finish heat exchange cooling water down the u-shaped groove to make it fast, within the drum surface processing with the application of the spiral u-shaped slot technology, not only make the squeezing effect of cooling water, and increased the reel internal heat exchange area, practiceproves that the application of this structure, drum heat exchange efficiency more than 30%, thus greatly improve the drum water cooling effect; Another drum wall caneffectively prevent the scale deposit on the inner wall of the drum, further to ensure the water cooling effect, and improve the service life of the drum.to ensure the quality of steel wire drawing. Drum surface finish Ra0.4 or higher, the surface hardness of about HRC60°, drum set satisfies the requirement of high-speed drawing wire line height. Wear and tear up the slot free replacement within 5000h

we have our own factory and we can custom the machine according to you requirements ,we also

can control :

1. the price;

2. the quality;

3. the delivery time;
