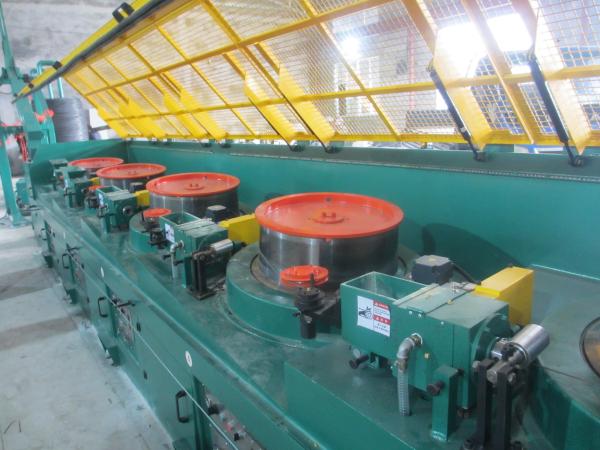

0.7mm Carbon Steel Wire Straight Wire Drawing Machine , High Efficient Wire Processing Machine
0.7mm Carbon Steel Wire Straight Wire Drawing Machine , High Efficient Wire Processing Machine
0.7mm Carbon Steel Wire Straight Wire Drawing Machine , High Efficient Wire Processing Machine
0.7mm Carbon Steel Wire Straight Wire Drawing Machine , High Efficient Wire Processing Machine
Specifications
Brand Name :
Straight line Wire Drawing Machine
Certification :
ISO9001
Place of Origin :
jiangyin china
MOQ :
1 set
Price :
Favourite
Payment Terms :
T/T 30% deposit，70% rest payment before shipment
Supply Ability :
10sets/month
Delivery Time :
60 days after receiving order and deposit
Packaging Details :
plastic bag
Usage :
Especially for all kinds of wire drawing machine
drawing materials :
High Medium Low Carbon, Stainless Steel Wire
Max inlet diameter :
Ø6.5mm--Ø5.5mm
Min outlet diameter :
Ø3mm-Ø-1.5mm
Drawing speed :
1200m/min
Tensile strength :
≤1300Mpa
Reply :
24h online
Description

0.7mm carbon steel wire straight wire drawing machine , Mild CE ISO9001 Wire Drawing equipment

Specifications

Our machine have good quality , high efficency,stable performance,high cost performance products.

Straight Line Steel Wire Drawing Machine

Features

1. The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.

2. It’s kind of high-efficient machine with easy operation, high degree of automation.

3. Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading

4. Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire

5. As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.

6. There is no relative sliding between wire and capstan. The quality of finished wire is much better.


Equipment Composition:
1 LZ6/560 Straight line wire drawing machine
2 800mmI-spool wire take-up machine
3 Man-machine interface control touch screen
4 Whole set electrical control cabinet



Main technical parameter and points:

(1) Inlet strength: ≦600 MPa

  1. Max inlet dia: Ф6.5mm
  2. Min wire outlet dia: Ф1.5mm

(4) Max compression rate:87%
(5) Max drawing speed:20m/s Normal drawing speed:18m/s
(6) Water consumption and pressure:5m3/h water pressure≥0.25MPa
(7) Air consumption and pressure:1.0m3/h air pressure≥0.6MPa
(8) Motor:①Main motor:30KW*1+22KW*5 AC motor
② Wire take-up machine:15KW AC motor

0.7mm Carbon Steel Wire Straight Wire Drawing Machine , High Efficient Wire Processing Machine

Electrical:

① The basic function in wire drawing machine is complete; Single machine is punctual, leftist writers point move, single point, leftist writers (right) running, stop; Tuning roller tension adjustment, mould box and roll cooling water regulation.
② the work station complete: total rev, stop, stop, acceleration, deceleration,
fault indicator, the meter reset
③ Touch screen to finish: mold fitting
(wire), speed setting, the length of the set (fixed-
length automatic parking), jump die set, inching
speed setting, fault, according to the actual running speed display, lighting switch
