1.5mm 22kw - 110kw High Speed Wire Drawing Machine With Low And Medium Carbon Wire
1.5mm 22kw - 110kw High Speed Wire Drawing Machine With Low And Medium Carbon Wire
1.5mm 22kw - 110kw High Speed Wire Drawing Machine With Low And Medium Carbon Wire
1.5mm 22kw - 110kw High Speed Wire Drawing Machine With Low And Medium Carbon Wire
1.5mm 22kw - 110kw High Speed Wire Drawing Machine With Low And Medium Carbon Wire
1.5mm 22kw - 110kw High Speed Wire Drawing Machine With Low And Medium Carbon Wire
Specifications
Brand Name :
Bright Wire Drawing Machine
Certification :
ISO9001
Place of Origin :
jiangsu china
MOQ :
1 sets
Price :
Negotiated
Payment Terms :
T/T 30% deposit，70% rest payment before shipment
Supply Ability :
10sets/month
Delivery Time :
60 days after receiving order and deposit
Packaging Details :
Naked
Condition :
New
Die No. :
10mm
Max inlet diameter :
Ø6.5mm--Ø5.5mm
Min outlet diameter :
Ø3mm-Ø-1.5mm
Drawing speed :
720m/min
Tensile strength :
≤1300Mpa
Total reduction rate :
≤98%
Description

1.5mm 22kw - 110kw High Speed Wire Drawing Machine with low and medium carbon wire

Features

1. High speed and stable running

2. Easy operation, AC frequency control

3. Air cooling + Water cooling

4. Vacuum system-Clean the dust, protect environment

5. Capstan: Unique overlay welding technology, can use over 2000 hours

6. Remote control: Find and solve electrical problems

Application

It is applied for the production of prestressing strand, steel cord, bead wire, steel wire, spring steel wire, stainless steel wire, gas welding wire, arc welding wire,etc.

5.1 Equipment features:

energy saving, low noise, simple structure, the main electrical components imported, high-speed, high efficiency.

5.2 Equipment Composition:

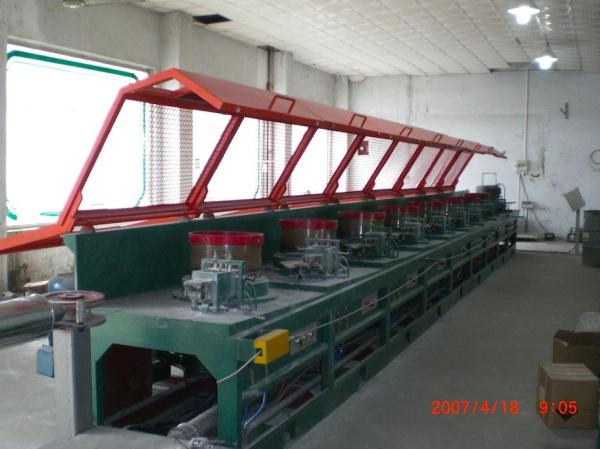

1 LZ6/560 Straight line wire drawing machine

2 800mmI-spool wire take-up machine

3 Man-machine interface control touch screen

4 Whole set electrical control cabinet

5.3 Main technical parameter and points:

(1) Inlet strength: ≦600 MPa

(2) Max inlet dia: Ф6.5mm

(3) Min wire outlet dia: Ф2.5mm

(4) Max compression rate:97%

(5) Max drawing speed:10m/s Normal drawing speed:9m/s

(6) Water consumption and pressure:5m3/h water pressure≥0.25MPa

(7) Air consumption and pressure:1.0m3/h air pressure≥0.6MPa

(8) Motor:

① Main motor:122KW*10 AC motor

②t ake-up machine:15KW AC motor
