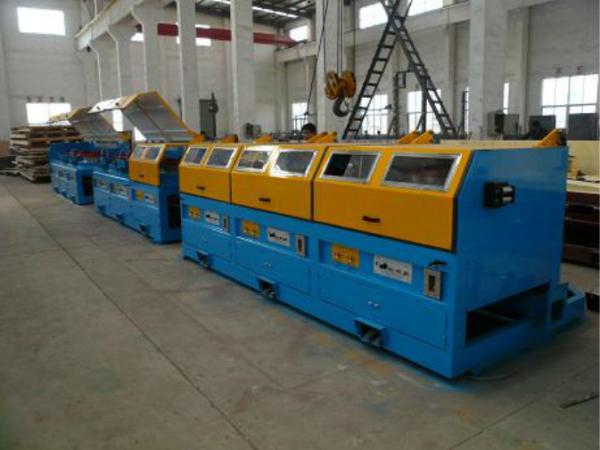

22KW * 10 AC Motor Stainless Steel Wire Pulling Machine Long Life Span
22KW * 10 AC Motor Stainless Steel Wire Pulling Machine Long Life Span
22KW * 10 AC Motor Stainless Steel Wire Pulling Machine Long Life Span
22KW * 10 AC Motor Stainless Steel Wire Pulling Machine Long Life Span
Specifications
Brand Name :
LZ300 LZ400 LZ500 LZ560 LZ600
Model Number :
Ø300—Ø600
Certification :
ISO9001，CE
Place of Origin :
JIANGSU CHINA
MOQ :
1SET
Price :
Negotiated
Payment Terms :
T/T 30% deposit，70% rest payment before shipment
Supply Ability :
10sets/month
Delivery Time :
60 days after receiving order and deposit
Packaging Details :
plastic bag
After-sales Service Provided: :
Engineers available to service machinery overseas
Processing Type: :
Haul-Off Machine, Other
Place of Origin: :
Jiangsu, China (Mainland)
Name :
Stainless steel wire drawing machine
Voltage :
as requirement
Model Number: :
High/Low carbon steel/stainless wire drawing machine
Total reduction rate :
≤92%
Description

Welcome to contact us and get more informations!

stainless steel wire drawing machine rope making machine

This machine is suitable for making ropes with Nylon, PE, PP, etc. yarns or strands

It consists of rope making device and strand making device can produce rope with Dia.4-28mm after continuous operation once omit extra working steps from strand making to rope making, thereby the production efficiency is greatly improved.

There is no waste yarn or scrap coming out during the production process, so the ropes are more attractive and durable.

Function:

This High/Low carbon steel/stainless wire drawing machineis used to draw iron, copper, aluminium wires, mainly for mesh weaving, construction, galvanization, or supply for the wire drawn of water tank.

This High/Low carbon steel/stainless wire drawing machine includes 2 drum-uint,3 drum-uint, 4drum-unit, 5drum-unit.

tire wire drawing machines can be ordered according to the need of our customers.

About us

1). With more than 20 years' experience in rope/ twine' manufacture

2). High quality and reasonable price

3). Prompt delivery and excellent service

Main technical parameter and points:

(1) Inlet strength: ≦650 MPa

(2) Max inlet dia: Ф6.5mm

(3) Min wire outlet dia: Ф0.5mm

(4) Max compression rate:92%

(5) Max drawing speed:12m/s Normal drawing speed:10m/s

(6) Water consumption and pressure:5m3/h water pressure≥0.25MPa

(7) Air consumption and pressure:1.0m3/h air pressure≥0.6MPa

(8) Motor:①Main motor:22KW*10 AC motor

② Wire take-up machine:15KW AC motor

22KW * 10 AC Motor Stainless Steel Wire Pulling Machine Long Life Span
