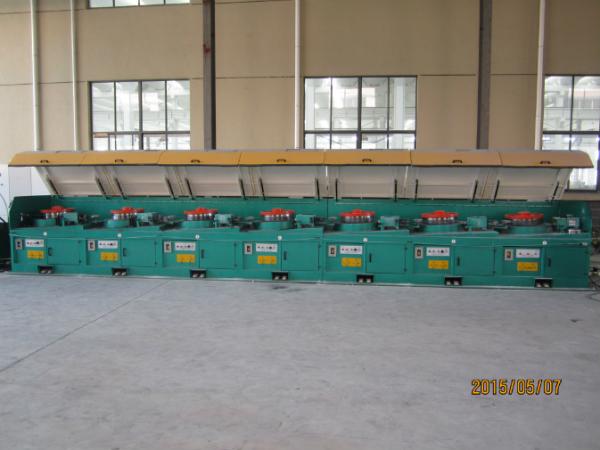

Low Carbon Ø300 - Ø600 Stainless Steel Wire Drawing Machine With Energy Efficiency
Low Carbon Ø300 - Ø600 Stainless Steel Wire Drawing Machine With Energy Efficiency
Low Carbon Ø300 - Ø600 Stainless Steel Wire Drawing Machine With Energy Efficiency
Low Carbon Ø300 - Ø600 Stainless Steel Wire Drawing Machine With Energy Efficiency
Low Carbon Ø300 - Ø600 Stainless Steel Wire Drawing Machine With Energy Efficiency
Low Carbon Ø300 - Ø600 Stainless Steel Wire Drawing Machine With Energy Efficiency
Specifications
Brand Name :
LZ300 LZ400 LZ500 LZ560 LZ600
Model Number :
Ø300—Ø600
Certification :
ISO9001，CE
Place of Origin :
JIANGSU CHINA
MOQ :
1SET
Price :
Negotiated
Payment Terms :
T/T 30% deposit，70% rest payment before shipment
Supply Ability :
10sets/month
Delivery Time :
60 days after receiving order and deposit
Packaging Details :
plastic bag
After-sales Service Provided: :
Engineers available to service machinery overseas
Drawing Method: :
Horizontal Four-step Pulleys Type
Place of Origin: :
Jiangsu, China (Mainland)
Name :
Stainless steel wire drawing machine
Voltage :
as requirement
Model Number: :
High/Low carbon steel/stainless wire drawing machine
Total reduction rate :
≤92%
Description

Low carbon Ø300 - Ø600 Stainless Steel Wire Drawing Machine with Energy efficiency

Product Advantages

1. Low cost;

2. Energy efficiency;

3. Stable and reliable performance;

4. Cleaner Production.

The domestic market share of stainless steel drawing machines takes more than 90% in stainless steel equipment industry area.

Function:

This High/Low carbon steel/stainless wire drawing machineis used to draw iron, copper, aluminium wires, mainly for mesh weaving, construction, galvanization, or supply for the wire drawin of water tank.

This High/Low carbon steel/stainless wire drawing machine includes 2 drum-uint,3 drum-uint, 4drum-unit, 5drum-unit.

tire wire drawing machines can be ordered according to the need of our customers.

Low Carbon Ø300 - Ø600 Stainless Steel Wire Drawing Machine With Energy Efficiency

Main technical parameter and points:

(1) Inlet strength: ≦650 MPa

(2) Max inlet dia: Ф6.5mm

(3) Min wire outlet dia: Ф0.5mm

(4) Max compression rate:92%

(5) Max drawing speed:12m/s Normal drawing speed:10m/s

(6) Water consumption and pressure:5m3/h water pressure≥0.25MPa

(7) Air consumption and pressure:1.0m3/h air pressure≥0.6MPa

(8) Motor:①Main motor:22KW*10 AC motor

② Wire take-up machine:15KW AC motor
