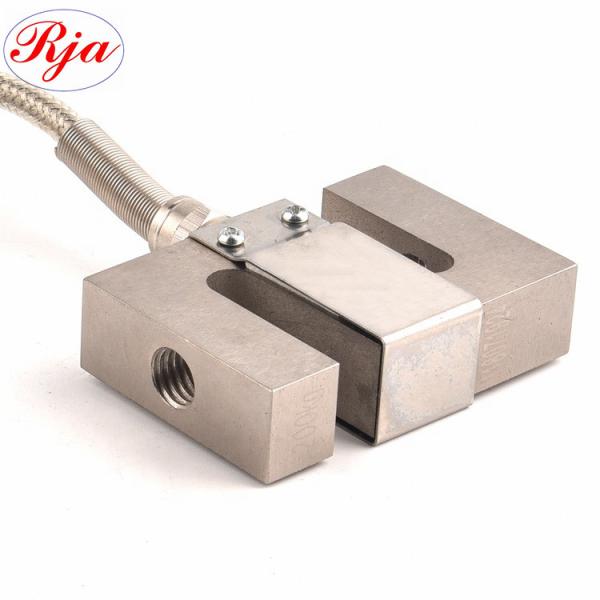

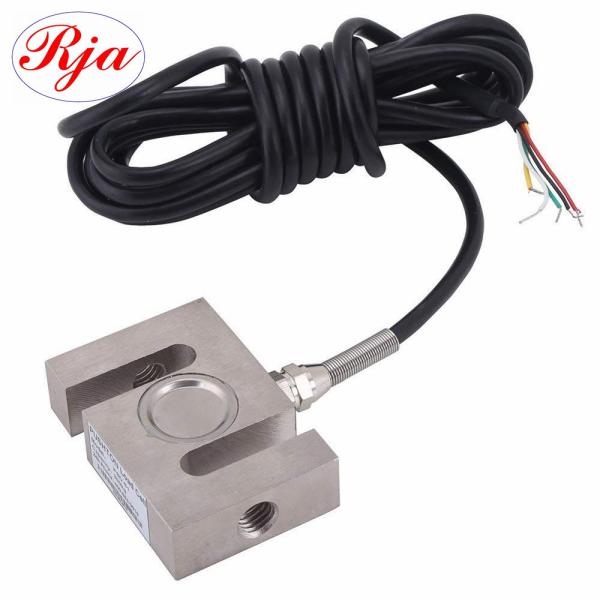

Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell
Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell
Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell
Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell
Specifications
Brand Name :
ruijia
Model Number :
RJ-9320
Place of Origin :
china
MOQ :
1pc
Price :
USD20-40/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
2-4 weeks
Packaging Details :
Product packed in foam box with bubble bag.
Usage :
compression and tension
Theory :
Resistance Sensor
Output :
Analog Sensor
Safe overload (%F.S) :
150
Ultimate overload :
300
Material :
Alloy steel
Accuracy :
C2 / C3
Application :
Crane scale, and other electronic weighing devices
Description

5t s type loadcell for building material high precision weighing sensors

What is strength of Load cell?

1. Made of alloy steel

2. With glue sealing and nickel plated surface,waterproof and anticorrosion, could work for various application

3. Suitable for crane scale, vibratory feeding equipment and other electronic weighing devices

What is Detailed image of Load cell?

Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell

Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell

What is Specifications of Load cell?

Specification:

Range (KG): 10, 50, 100, 150, 200, 250, 300, 500, 1000, 2000, 5000

Accuracy: C2/ C3

Temp. effect on span (%F.S/10℃): ±0.017 & ±0.011

Comprehensive error (%F.S): ±0.03 & ±0.02

Temp. effect on zero (%F.S/10℃): ±0.023 & ±0.015

Rated output (mV/ V): 2.0±0.004

Compensated temp. range (℃): -10~+40

Creep (%F.S/30min): ±0.024 & ±0.016

Operation temp. range (℃): -20~+55

Zero balance (%F.S): ±1.0

Excitation voltage (V): 9-12(DC)

Input resistance (Ω): 350±5

Safe overload (%F.S): 150

Output resistance (Ω): 350±3

Ultimate overload (%F.S): 200

Insulation resistance (MΩ): ≥5000 (100VDC)

Ingress protection: IP66

What is Dimension of Load cell?

Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell

Range (kg )

A

B

C

M

10-50

51

12.7

64

M8

100-500

51

19

76

M12

750-1500

50.8

25.4

76

M12 X1.75

2000-5000

76.2

25.4

108

M18X1.5

What is Application of Load cell?

Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell

What is Process Flowchart of Load cell?

Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell

Packaging & Shipping

Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell

Alloy Steel S Type Load Cell For Building Material , 5 Ton High Precision Load Cell

Our Services

Service standards: we are committed to provide a high quality and responsive service to all clients.

The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business

OEM available
