2kg 3kg 5kg Kitchen Scale single point Load Cell Analog Output Available
2kg 3kg 5kg Kitchen Scale single point Load Cell Analog Output Available
2kg 3kg 5kg Kitchen Scale single point Load Cell Analog Output Available
2kg 3kg 5kg Kitchen Scale single point Load Cell Analog Output Available
Specifications
Brand Name :
ruijia
Model Number :
RJ-6520
Place of Origin :
china
MOQ :
1pc
Price :
USD5-10
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
Within 2-4 Weeks
Packaging Details :
Standard export packaging
Theory :
Resistance Sensor
Capacity :
50-200kg
Comprehensive error :
±0.03
Safe overload (%F.S) :
120
Ultimate overload (%F.S) :
150
Excitation voltage (V) :
9-12(DC)
Accuracy :
C2
Application :
electronic scale and other weighing equipment
Description

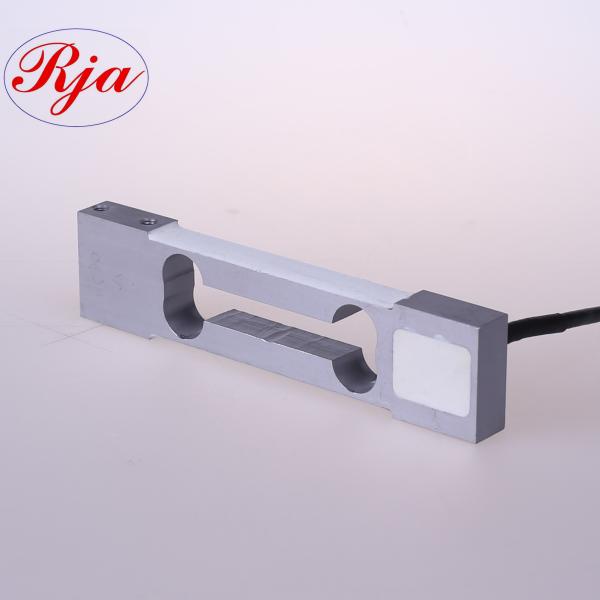

2kg / 3kg Kitchen Scale single point Load Cell Analog Output Available

Features:

The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti - corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Dimension:

2kg 3kg 5kg Kitchen Scale single point Load Cell Analog Output Available

Specification:

Specification:

Rated Capacity : 0.3, 0.5,1, 2, 3 (KG)

Creep in 2 Min.:±0.015%R.O.

Accuracy :B*

Creep in 30 Min.:±0.03%R.O.

Rated output(mV/V) :1.3±10%mV/V

Temp. effect on Output: ±0.03%R.O./10℃

Zero balance : ±5%R.O.

Temp. effect on zero: ±0.05%R.O./10℃

Input resistance(Ω) : 405±10Ω

Excitation,Recommended:5-12VDC

Output resistance(Ω) : 350±3Ω

Excitation,Maximum:18VDC

Linearity Error:±0.02%R.O.

Operating Temp.Range:-20~+60℃

Repeatability Error:±0.015%R.O.

Safe Overload:150%R.C

Hysteresis Error:±0.015%R.O.

Ultimate Overload:200%R.C.

Compensated Temp.Range:-10~+40℃

Insulation Resistance:≥2000MΩ(50VDC)

Operating Temp.Range:-20~+60℃

Cable,Length:¢4mmx0.25m

Excitation,Recommended:5~12VDC

Protection Class:IP65

Application

2kg 3kg 5kg Kitchen Scale single point Load Cell Analog Output Available

Process flowchart

2kg 3kg 5kg Kitchen Scale single point Load Cell Analog Output Available

FAQ

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. When will you arrange the production?

We will arrange the production immediately after receiving your payment.

4. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
