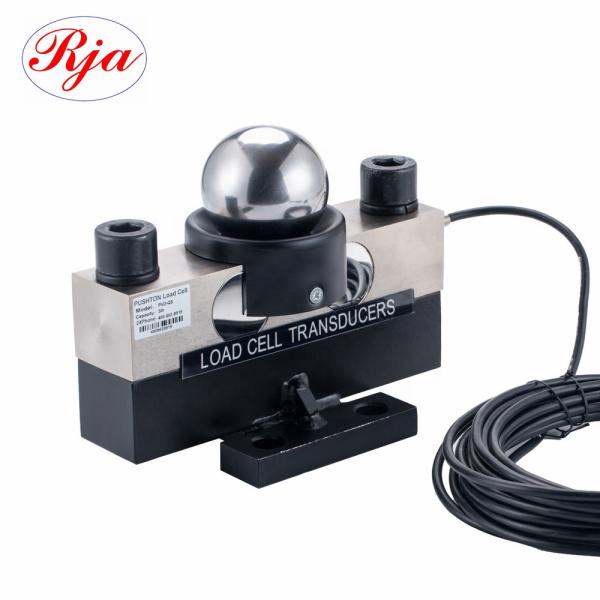

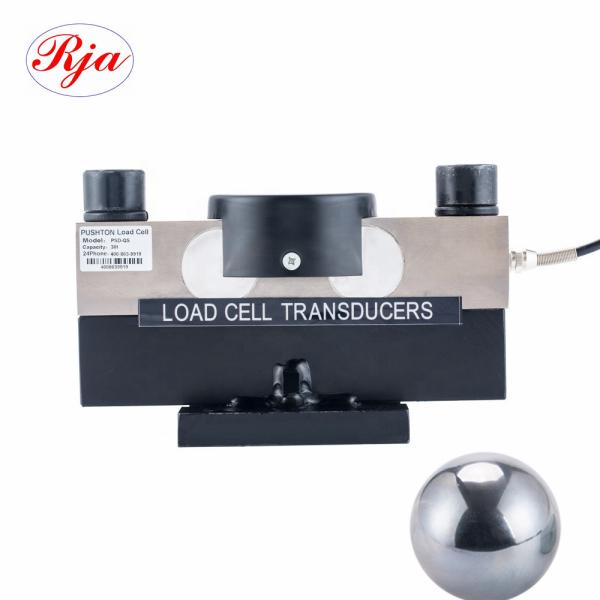

Stainless Steel Weighbridge Load Cell With Analog Or Digital Optional
Stainless Steel Weighbridge Load Cell With Analog Or Digital Optional
Stainless Steel Weighbridge Load Cell With Analog Or Digital Optional
Stainless Steel Weighbridge Load Cell With Analog Or Digital Optional
Specifications
Brand Name :
ruijia
Model Number :
HM9B
Place of Origin :
China
MOQ :
1pc
Price :
USD80-150/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
2-4 weeks
Packaging Details :
Standard export packaging
Usage :
Pressure Sensor
Theory :
Resistance Sensor
Output :
Analog or digital optional
Range :
10t
Accuracy :
C3
Comprehensive error (%F.S) :
≤0.02
Input resistance(Ω) :
750±7
Output resistance(Ω) :
702±5
Material :
alloy steel or stainless steel
Item :
Truck Scales Bridge Type Load Cell 10t
Description

Popular weighbridge load cell stainless steel 10T 20T 30T 50T weighing sensors for truck scales

What is Features of load cell?

Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and otherelectronic weighing devies.

What is load cell?

Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.

What is Specifications of load cell?

Precision : C3 Temp. effect on span(%F.S/10℃): 0.0016
Comprehensive error(%F.S) : ≤0.02 Temp. effect on zero(%F.S/10℃):0.002
Rated output(mv/v) : 2.0±0.004 Compensated temp. range(℃ ) : -10~+40
Creep(%F.S/30min) : ±0.02 Use temp. range(℃ ) : -35~+80
Zero balance(%F.S) : ±1.0 Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 750±7 Safe overload (%F.S) : 150
Output resistance(Ω) : 702±5 Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(50VDC) Defend grade : IP67

What is Dimension of load cell?
Stainless Steel Weighbridge Load Cell With Analog Or Digital Optional

What is Application of Load cell?

Stainless Steel Weighbridge Load Cell With Analog Or Digital Optional

What is Detailed image of Load cell?

Stainless Steel Weighbridge Load Cell With Analog Or Digital Optional
