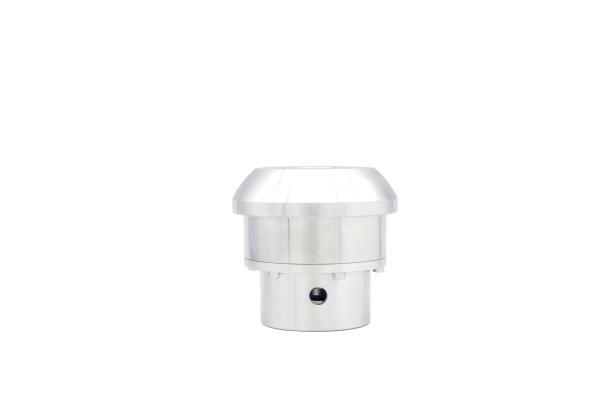

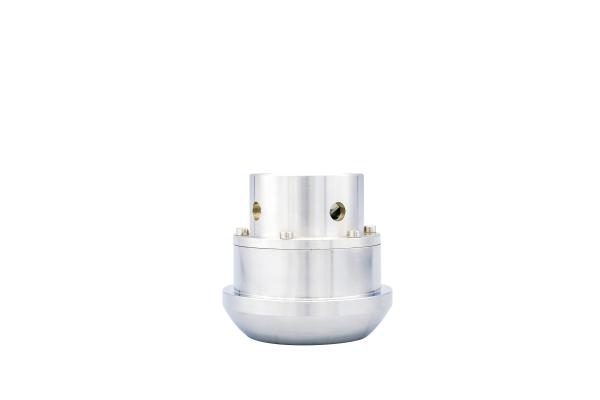

High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck
High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck
High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck
High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck
High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck
High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck
High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck
High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck
Specifications
Brand Name :
Ruijia
Model Number :
PT-5F
Place of Origin :
China
Repeatability :
0.1 %FS
Ultimate Overload :
200%
Supply voltage :
9～30V
Annual stability :
0.5 %FS
Protection :
IP67
Linearity :
0.2 %FS
Insulation Resistance :
≥5000 MΩ（50VDC）
Safe Overload :
150%
Description

Product Description:

Stainless Steel Strain Gauge Load Cell is an ideal choice for measurement and control of forces in oil fields, pressure control and other harsh environments. Manufactured with superior stainless steel, it is highly durable and rugged. It is designed with annual stability of 0.5 %FS, protection of IP67, Safe Overload of 150% and capacity of 5000/10000/15000/20000 Psi. It is also equipped with a supply voltage of 9 to 30V. It is the perfect choice for reliable and accurate measurement and control of forces in oil fields and other harsh environments.

Features:

  1. Stainless steel overall encapsulation, spherical sealing, good sealing against moisture;
  2. Compact structure, and good stability;
  3. All stainless steel material, anti-clogging structure design;
  4. Good shock resistance, strong impact resistance and good abrasion resistance;
  5. Adapt to a variety of exploration and mining working conditions

Dimensions:

High Accuracy Pressure Transmitter For Oilfield Drilling Cementing Fracturing Truck

Technical Parameters:

Parameters Values
Overall structure 1502 Union
Capacity 5000/10000/15000/20000 Psi
Hysteresis 0.2 %FS
Combined error 0.5 %FS
Repeatability 0.1 %FS
Annual stability 0.5 %FS
Insulation Resistance ≥5000 MΩ(50VDC)
Safe Overload 150%
Ultimate Overload 200%
Operating Temperature Range -40～+125 ℃

Support and Services:

We provide our customers with comprehensive technical support and service for strain gauge load cells. Our experienced technical team is available to assist you with installation, calibration, and troubleshooting.

Calibration

We offer calibration services for our strain gauge load cells. Our technicians have the necessary experience and equipment to ensure that your load cells are accurately calibrated and providing accurate readings.

Troubleshooting

We provide troubleshooting services for strain gauge load cells that are not providing accurate readings or are having other issues. Our experienced technical team is available to assist you in identifying and resolving any issues with your load cells.
