Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC
Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC
Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC
Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC
Specifications
Brand Name :
ruijia
Model Number :
RJ-6512
Place of Origin :
china
MOQ :
10pc
Payment Terms :
Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
2-4 weeks
Packaging Details :
Product packed in foam box with bubble bag.
Theory :
Resistance Sensor
Output :
Analog Sensor
Ultimate overload (%F.S) :
150
Accuracy :
C2/ C3
Excitation voltage (V) :
3-10VDC
Application :
postal scales, kitchen scales,fishing scales etc.
Rated capacity :
3-75kg
Rated output-HALF BRIDGE :
0.8±0.15mV/V
Material :
alloy steel
Description
Hot sell Micro Load Cells half Bridge For Force Test equipment
What is Micro Load Cell?

Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas.

Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC

Features:

Micro load cell can be applied in kitchen scales, postal scales, another micro electronic weighting systems.

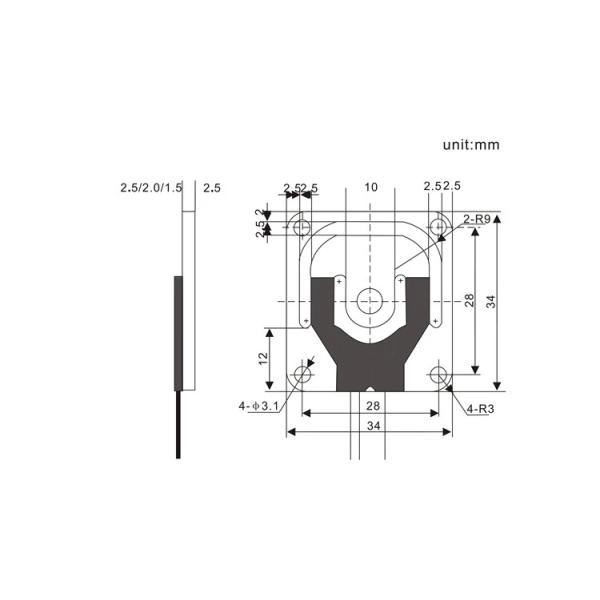

Dimension:

Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC

Specifications:

Rated capacity 10,30,50kg
Rated output- FULL BRIDGE:

1.6±0.2mV/V (50kg)

1.6±0.2mV/V (30kg)

1.0±0.2mV/V (10kg)

 Temp. effect on span 0.1%F.S/10℃
Rated output- HALF BRIDGE: 0.8±0.15mV/V Temp. effect on zero 0.1%F.S/10℃
Comprehensive error 0.05%F.S Input resistance 1000±10Ω
Non-linearity 0.05%F.S Output resistance 1000±10Ω
Repeatability 0.05%F.S Insulation resistance ≥2000MΩ
Hysteresis error 0.05%F.S Excitation voltage 3-10VDC
Creep 0.05%F.S/10min Compensated temp. range -10~+40℃
Zero balance 1±0.1%F.S Defend grade IP66


Application

Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC

Product flowchart

Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC

Packaging & Shipping

Alloy Steel Micro Load Cells Half Bridge For Force Test Equipment 10VDC

Our Services

Service standards: we are committed to provide a high quality and responsive service to all clients

The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business

OEM available

FAQ

Q:What are the applications of micro load cell?

A:Kitchen scales, human scales, vending machines, unmanned supermarkets, hanging scale, etc.

Q:What is half bridge and full bridge?

A: Half bridge has 3 wires, 4 pieces in 1 set. Full bridge has 4 wires, it can be used alone.

Q: What is wire meaning?

A: Red: E+, Black: E-, Green: S+, White: S-

Q: What is the accuracy for micro load cell?

A: 0.05%, 0.1%, 0.2%

Q: Can micro load cell connect with amplifier/transmitter?

A: NO. The micro resistance is about 1000Ω, the transmitter can connect with 350Ω-700Ω load cells.
