Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg
Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg
Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg
Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg
Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg
Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg
Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg
Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg
Specifications
Brand Name :
ruijia
Model Number :
RJ-9210
Place of Origin :
China
MOQ :
1pc
Price :
USD15/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Piece/Pieces per Month
Delivery Time :
2-4 weeks
Packaging Details :
Standard export packaging
Capacity :
60kg
Combined error :
≤±0.05%FS
Creep :
≤±0.02%FS(15min)
Input resistance :
350±10 Ω
Output resistance :
350±10 Ω
Operating temperature :
-20~+80℃
Ultimate overload :
150%FS
Protection class :
IP65
Description

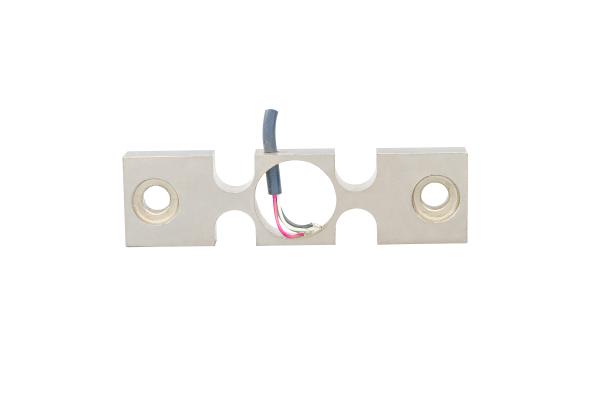

60 kg Precision Load Cell Elevator Weighing System Alloy Steel Materail

What is load cell?

Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.​

Product Features:

1. Elastomer for alloy Steel material

2. Suitable for elevator overload weighing system.

3. The sensor can be used independently.

Technical parameters:

Capacity Kg 60
Sensitivity mV/V 2.0±0.2
Accuracy

≤±0.05
Creep(15min) %FS ≤±0.02
Input Resistance Ω 350±10
Output Resistance Ω 350±10
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.02
Temperature Effect on Zero %FS/10℃ ≤0.02
Rated Temperature Range ℃ -10～+60
Operating Temperature Range ℃ -20～+80
Proposed Excitation Voltage V 6～12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection 　 IP65
Cable specification mm Ф4
Cable length m 2.5
Material 　 Alloy Steel

Dimension

Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 KgElevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg

Application

Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg

Process flowchart

Elevator Weighing System Strain Gauge Load Cell Alloy Steel Materail 60 Kg

FAQ

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Western Union, Paypal, etc.

4. When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.

6. What about packing?

Standard export package: each unit has individual box and all boxes are packed in standard packages.
