Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System
Specifications
Brand Name :
ruijia
Model Number :
RJ-6570
Place of Origin :
china
MOQ :
1pc
Price :
USD 18~30/piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
Within 2-4 Weeks
Packaging Details :
Standard export packaging
Capacity :
100//200/350/500/750/1000/2000 kg
Sensitivity :
2.0±0.2 mV/V
Accuracy :
±0.02
Creep（15min) :
±0.02 %FS
Insulation Resistance :
≥5000（100VDC）M Ω
Allowed Excitation Voltage :
18 V
Protection :
IP65
Material :
Aluminum Alloy
Description

Aluminum Alloy 100~2000 kg Precision Load Cell Suitable for Platform Scale electronic Weighing System

Theory:

A load cell is a type of transducer which is used to convert mechanical force into a measurable electrical output, anything which needs to be weighed probably uses a load cell to do so. Load cells come in many different shapes and sizes so that they can be added to different machinery and weighing equipment. Load cells generally consist of a spring element on which strain gauges have been placed. The spring element is usually made of steel or aluminum. That means it is very sturdy, but also minimally elastic.

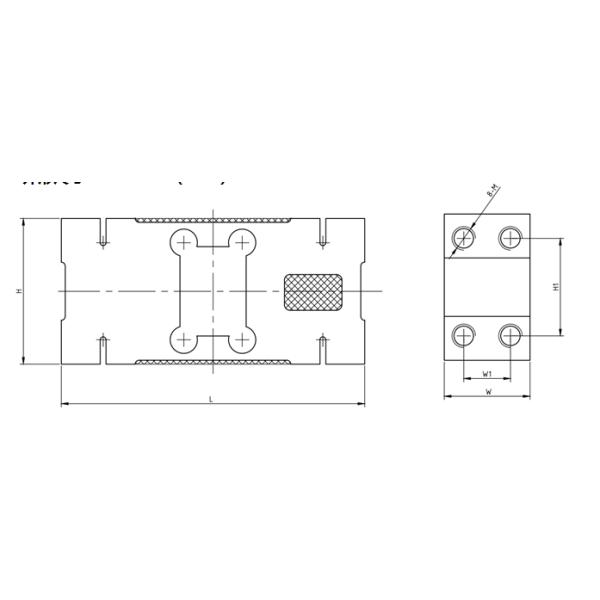

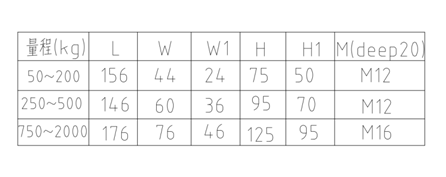

Dimension:

Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System

Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System

Specification:

Capacity Kg 100//200/350/500/750/1000/2000
Sensitivity mV/V 2.0±0.2
Accuracy

±0.02
Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.02
Temperature Effect on Zero %FS/10℃ ±0.02
Rated Temperature Range ℃ -10～+60
Operating Temperature Range ℃ -20～+80
Proposed Excitation Voltage V 5～12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection 　 IP65
Cable specification mm Ф6
Cable length m 3
Material 　 Aluminum Alloy
























About the Company
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System

Application

Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System

Process flowchart

Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System

Packing & Shipping
Aluminum Alloy 100kg Precision Load Cell For Platform Scale Electronic Weighing System

FAQ

1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.

2.Do you accept customized?
Yes, we have different customers make their own OEM products. So we can make products as per your requirement.

3. When will you arrange the production?
We will arrange the production immediately after receiving your payment.

4. Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.

5. Do you have any discount?
To clients who bring repeat orders and large orders. Please contact us for better quote.
E-mail: frank0505@126.com yangzaiquan@xarj.cn Whats: +86 18992920670

Looking forward to cooperating with you!
