5N/500N/1000N S Type Micro Load Cell 1kg/10kg/30kg/200kg DC 5V
5N/500N/1000N S Type Micro Load Cell 1kg/10kg/30kg/200kg DC 5V
5N/500N/1000N S Type Micro Load Cell 1kg/10kg/30kg/200kg DC 5V
5N/500N/1000N S Type Micro Load Cell 1kg/10kg/30kg/200kg DC 5V
5N/500N/1000N S Type Micro Load Cell 1kg/10kg/30kg/200kg DC 5V
5N/500N/1000N S Type Micro Load Cell 1kg/10kg/30kg/200kg DC 5V
Specifications
Brand Name :
RUIJIA
Model Number :
RJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD177.73/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
Within 2Weeks
Packaging Details :
Standard export packaging
Input impedance :
350±30Ω
Output impedance :
350±5Ω
Insulation resistance :
≥5000MΩ/DC 100V
Safety overload :
150%F.S
Ultimate overload :
300%F.S
Bridge voltage (excitation voltage) :
DC 5V
Description

Micro Load Cell, S Type, 5N/500N/1000N, 1kg/10kg/30kg/200kg

S type tension and compression load cells have capacity range from 0.5kg, 1kg, 5kg, 10kg, 30kg to 200kg (5N to 2000N). Load cell capacity can be customized according to customer requirements.
After purchasing one RJ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification

Model RJ
Weight 0.1kg
Capacity range * 0kg~200kg (0~2000N)
Matched Display Controller RJ
Accuracy 0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity 2.0±0.2mV/V (Low range variations may differ)
Creep ±0.05%F.S/30min
Zero output ±2%F.S
Temperature effect on zero ±0.05%F.S/10℃
Temperature effect on output ±0.05%F.S/10℃
Operating temperature -20℃~+80℃
Input impedance 350±30Ω
Output impedance 350±5Ω
Insulation resistance ≥5000MΩ/DC 100V
Safety overload 150%F.S
Ultimate overload 300%F.S
Bridge voltage (excitation voltage) DC 5V
Maximum bridge voltage DC 15V
Material 17-4PH stainless steel
Protection class IP66
Cable length 1.5m
Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Features and applications

Check out this video presenting the exclusive characteristics and uses of the s type micro load cell. Featuring an easy installation procedure, this load cell integrates temperature compensation to ensure stability in various operating conditions.

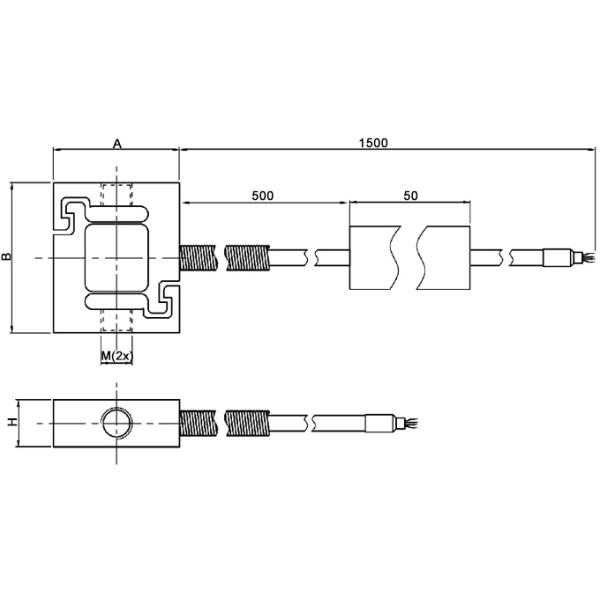

Dimension

Capacity Dimension (mm)
N kg M H A B
5, 10, 20, 30, 50, 100 0.5, 1, 2, 3, 5, 10 M3 5 16 19.1
200, 300, 500 20, 30, 50 M4 6 16 19.1
250, 300, 500, 1000, 2000 25, 30, 50, 100, 200 M8 14 26 40
