Load Cell - 10kg, Straight Bar with Hook
Load Cell - 10kg, Straight Bar with Hook
Load Cell - 10kg, Straight Bar with Hook
Load Cell - 10kg, Straight Bar with Hook
Load Cell - 10kg, Straight Bar with Hook
Load Cell - 10kg, Straight Bar with Hook
Specifications
Brand Name :
RUIJIA
Model Number :
RJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD12.75 ~35/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
Within 2Weeks
Packaging Details :
Standard export packaging
Comprehensive Accuracy :
0.05 %F.S
Load (Capacity) :
10kg
Output Sensitivity :
1.0±0.1 mV/V
Zero Output :
±0.1 mV/V
Nonlinearity :
0.05 %F.S
Repeatability :
0.05 %F.S
Description

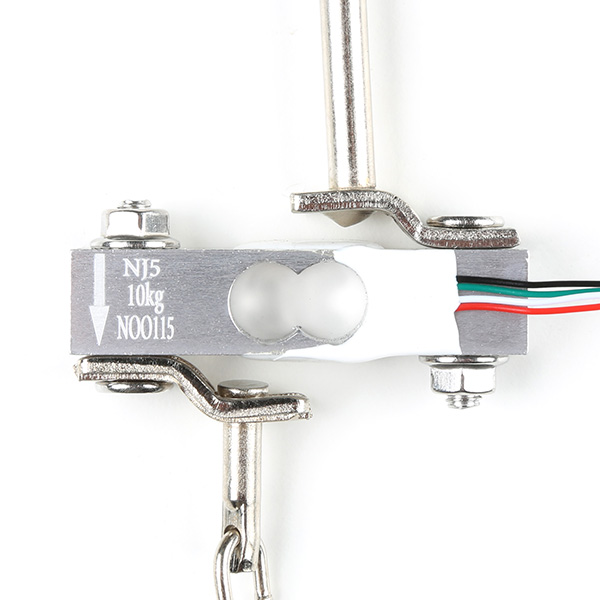

Load Cell - 10kg, Straight Bar with Hook

This straight bar load cell (sometimes called a strain gauge) can translate up to 10kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object's weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

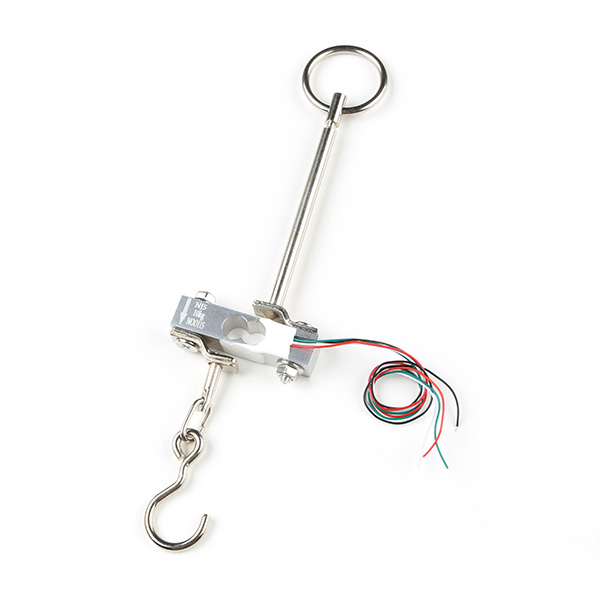

This particular load cell comes attached to hardware that ends with a hook. This allows you to easily install and hang your load cell.

Each straight bar load cell is made from an aluminum-alloy and is capable of reading a capacity of 10kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows: red = Exc+, green = Sig+, black = Exc-, and white = Sig-.

Comprehensive Accuracy 0.05 %F.S
Load (Capacity) 10kg
Output Sensitivity 1.0±0.1 mV/V
Zero Output ±0.1 mV/V
Nonlinearity 0.05 %F.S
Repeatability 0.05 %F.S
Hysteresis 0.05 %F.S
Creep 0.05 %F.S/3 min
Zero Drift 0.05 %F.S/1 min
Temp. Effect on Zero 0.2 %F.S/10°C
Temp. Effect on Span <0.15 %F.S/10°C
Input Resistance 1000±50 Ω
Output Resistance 1000±50 Ω
Insulation Resistance ≥2000 MΩ 100VDC
Excitation Voltage 3-12 V
Operating Temperature -10°C to + 50°C
Ultimate Overload 150 %F.S

Load Cell - 10kg, Straight Bar with Hook

Load Cell - 10kg, Straight Bar with Hook

Company Information

Load Cell - 10kg, Straight Bar with Hook
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!

Our Advantages

Load Cell - 10kg, Straight Bar with Hook

Load Cell - 10kg, Straight Bar with Hook

FAQ

Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2: Can you print our brand on the product?
A: Yes, Of course. It can make customer's brand logo.
Q3: What is the payment terms?
A: T/T,L/C,etc.
Q4: How long is your warranty period?
A: Our warranty period is 12 months.
