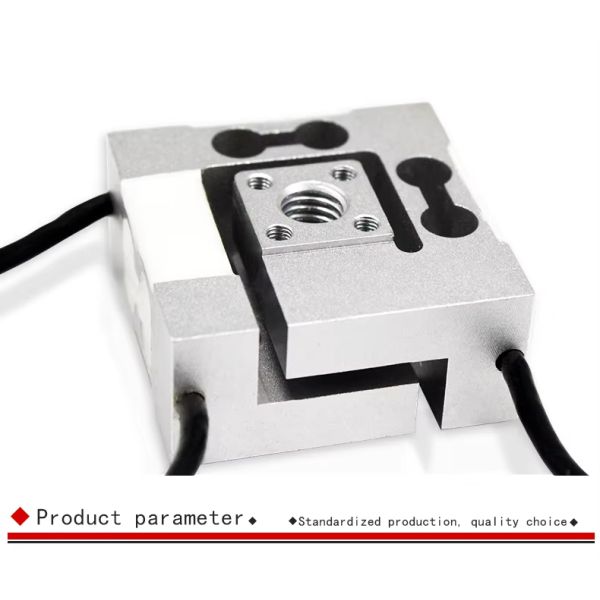

Specifications
Brand Name :
RUIJIA
Model Number :
RJDW-004
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD199 ~390.41/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
Within 2Weeks
Packaging Details :
Standard export packaging
Mounting Type :
Screw hole fixed installation
Description :
Static torque sensor
Type :
force sensor
Theory :
Vibration sensor
Output :
5-15V
sensor type :
Static torque sensor
Operating temperature :
-20-80℃
Output type :
Analog signal
Precision :
0.05%
Linear range :
0.1%
Specification :
0.5N.m,1N.m,2N.m,3N.m,5N.m,6N.m,10N.m,20N.m,30N.m,50N.m,100N.m,150N.m
material :
Aluminum alloy
Applicable scenarios :
installation engineering
Description
Product Description

What are the features of RJDW-003 ?

1. Static torque sensor

2. Compact structure, easy to install

3. Protection grade: IP65;

4. Used for static , non-continuous rotation torque measurement.

What are the specifications of RJDW-003?

Range 1, 2, 3, 5, 6, 10, 20, 30, 50, 100kg
Comprehensive error ≤±0.1%, ±0.3%
Sensitivity 1.5±10%mV/V
Zero balance ±2.0%F.S
Non-linearity 0.1, 0.3%F.S
Hysteresis ≤±0.05%F.S
Repeatability ≤±0.05%F.S
Creep ≤±0.03%F.S/30min
Temp.effect on span ±0.05%F.S/10℃
Temp.effect on zero ±0.05%F.S/10℃
Input resistance 410±20Ω
Output resistance 350±10Ω
Insulation resistance ≥5000MΩ/100VDC
Excitation voltage 9~15VDC
Compensated temp range -10~60℃
Operating temp Range -20~80℃
Safe overload 120%F.S
Ultimate overload 150%F.S
Electrical connections

RED/E+, BLACK/E-

GREEN/S+, WHITE/S-
