Specifications
Brand Name :
RUIJIA
Model Number :
Multi Six-Dimensional Force 6 Axis Sensor
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD1170~1350piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
Within 2Weeks
Packaging Details :
Standard export packaging
Description :
MBB Single Ended Shear Beam Load Cell
Features :
Compact structure, easy to install
Output :
Analog Sensor
Rated Load :
Fx=60kg Fy=60kg Fz=80kg
Description

Multi Force 6 Axis Sensor Weight Sensor Load Cell For Robotics Production Material Medical Applications Collaborative Robots

Multi Force 6 Axis Sensor Weight Sensor Load Cell For Robotics Production Material Medical Applications Collaborative Robots

For Robotics Production Material Medical Applications Collaborative Robots
The Nload200 six-axis force sensor can be seamlessly integrated with the control system, enabling rapid data transmission and precise real-time monitoring. Whether it's for high-precision force control applications in the field of industrial automation or for accurate data collection in scientific research experiments, the Nload200 can demonstrate outstanding performance.
Description:

The Nload200 six-axis force sensor is made of stainless steel, featuring high strength and corrosion resistance. It is capable of operating reliably in complex environments for extended periods. Whether for high-precision force control in industrial automation or accurate data acquisition in scientific research, the Nload200 delivers outstanding performance.
This sensor can simultaneously measure forces in three directions (Fx, Fy, Fz) and moments in three directions (Mx, My, Mz).
It provides users with comprehensive and accurate six-axis force information.
Equipped with a digital RS485 interface, the Nload200 can seamlessly connect with various control systems, enabling fast data transmission and real-time monitoring.

Multi Force 6 Axis Sensor Weight Sensor Load Cell For Robotics Production Material Medical Applications Collaborative Robots

Specifications:
Rated Load
kg
50,75,100,200
Elastomer material
--
Stainless Steel
Relastomer material
FS
≥ 0.5%
Nonlinearity
FS
≥ 0.1%
Coupling interference
FS
≤ 3%
Operating temperature
℃
-10~+40
Digital interface
--
RS485
Cable length
M
5

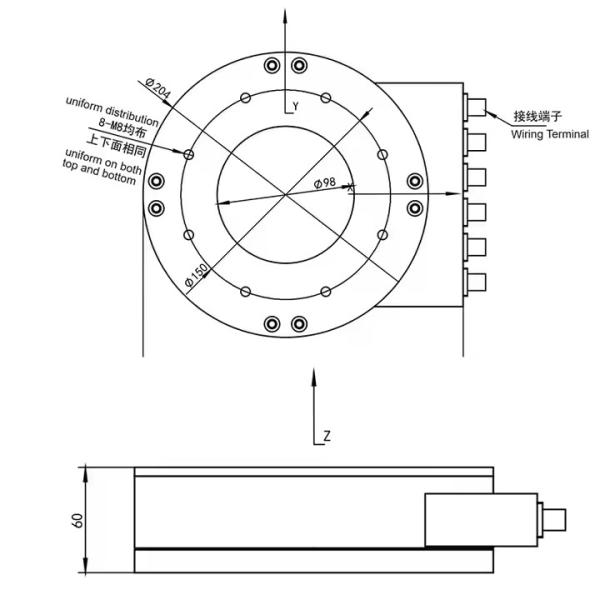

Dimension(in mm)& Capacity & Wiring Code:
Applications:
Applicable to robotic arms, rehabilitation medical devices, biomimetic experiments, aircraft lift monitoring, robotic assembly,and educational research.
Industrial Manufacturing:
In robotic control, sensors precisely measure forces and moments at the robot's end effector, enabling high-precision operations.This is especially beneficial in tasks like assembly and polishing on automated production lines, ensuring accuracy, stability,improved efficiency, and product quality.
Scientific Research:
For material performance testing, sensors measure parameters such as strength, stiffness, and plastic deformation under force,providing valuable data for research. In biomedical studies, they help explore biological systems by measuring deformation and stress distribution in tissues or cells under different forces.
Medical Applications:
Integrated into surgical tools, six-axis force sensors provide real-time feedback on forces and moments, allowing doctors to perform surgeries with greater precision.
Aerospace:
Widely used for attitude control and load measurement in aircraft, sensors in wind tunnel tests capture six-axis force data
under various conditions, aiding design and optimization. During spacecraft docking and attitude adjustments, they ensure task safety and success.
Automotive Industry:
In crash tests, sensors measure forces and moments during impact to evaluate vehicle safety. For chassis and suspension development, they analyze forces and moments between wheels and the ground, optimizing design for better stability and comfort.
In summary, six-axis force sensors have broad applications across industries. As technology advances and use cases expand, they will continue driving intelligent innovation in various fields.
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!
