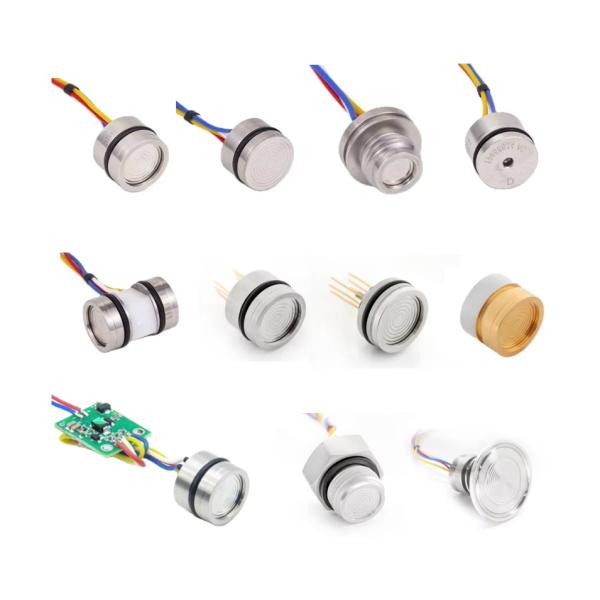

Factory OEM ODM CE RoHS Manufacturer 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor
Factory OEM ODM CE RoHS Manufacturer 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor
Factory OEM ODM CE RoHS Manufacturer 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor
Factory OEM ODM CE RoHS Manufacturer 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor
Factory OEM ODM CE RoHS Manufacturer 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor
Factory OEM ODM CE RoHS Manufacturer 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor
Specifications
Brand Name :
RUIJIA
Model Number :
RJ10
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD6.5-8.5/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
Within 2Weeks
Packaging Details :
Standard export packaging
Pressure range :
-100kPa...0~10kPa...100Mpa
Pressure reference :
Gauge | Absolute | Sealed
Supply :
1.5mA
Protection :
IP65
Material :
Stainless steel 316
Ambient temp :
-40℃~125℃
Description

Factory OEM ODM CE RoHS Manufacturer 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor

Features

■ With constant current and constant voltage excitation options

■ Imported highly reliable pressure die

■ Wide temperature compensation

■ Normalized output available

■ Compensation board filled with glue for protection against moisture

■ Φ19mm standard OEM

■ All 316L material

■ High performance, all solid, high reliability

■ 18 months warranty period

Applications

■ Process control systems

■ Pressure calibration instruments

■ Refrigeration equipment and HVAC control

■ Hydraulic systems and valves

■ Level measurement

■ Biomedical instruments

■ Ships and navigation

■ Aircraft and avionics systems

Product overview
RJ10 piezoresistive silicon pressure sensor is the core component for the manufacture of pressure sensors and pressure transmitters. As high-performance pressure sensitive component, RJ10 can be easily amplified and assembled into the pressure transmitters with standard signal output.
RJ10 packages diffused silicon pressure sensitive die to 316L stainless steel housing. External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil. Pressure sensitive die does not directly contact with measured medium, forming all solid structure of pressure measurement. So the product can be applied to a variety of occasions, including harsh corrosive medium environment.
RJ10 uses O-ring for pressure seal, which is easy to install.
The company can also undertake special customization based on the needs of users, such as pressure sensors of all welded structure, wide temperature compensation, high reliability, anti-shock
Specification
Pressure range
-100kPa~0~10kPa…100MPa
Pressure reference
Gauge pressure, Absolute pressure, Sealed gauge pressure
Excitation
1.5mA recommended for constant current
10V recommended for constant voltage
Input impedance
Constant current: 2kΩ~5kΩ
Constant voltage: 3kΩ~18kΩ
Electrical connection
Gold-plated KOVAR pin or silicon soft wire
Compensation temp.
Constant current: 0℃~60℃(≤35kPa), -10℃~70℃(other ranges);
Constant voltage: -20℃~85℃
Operating temp.
-40℃~125℃
Storage temp.
-40℃~125℃
Insulation resistance
≥200MΩ/250VDC
Response time
≤1ms (up to 90%FS)
Measured medium
All the liquids and gases compatible with 316L.
Mechanical vibration
20g (20~5000Hz)
Shock
100g (10ms)
Service life
10×106 (cycles)
Diaphragm material
316L
Housing material
316L
Oil filling
Silicon oil
Sealing ring
NBR or fluorine rubber

Factory OEM ODM CE RoHS Manufacturer 19mm Universal Vacuum Absolute Piezoresistive Diffused Silicon Pressure Sensor

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.

4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
