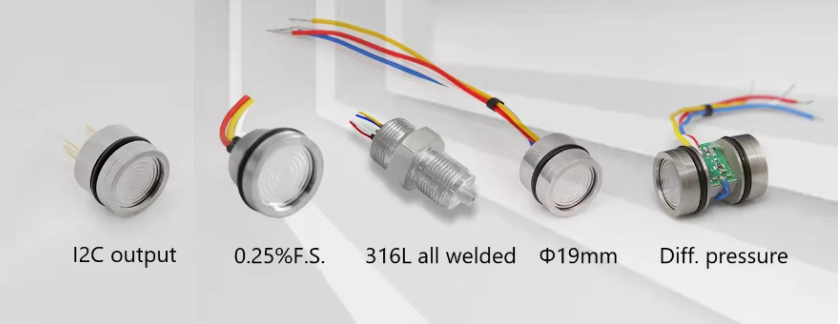

RJ10 OEM Stainless Steel Universal 19mm Piezoresistive Silicon Pressure Sensor for Water Air Liquid Gas
RJ10 OEM Stainless Steel Universal 19mm Piezoresistive Silicon Pressure Sensor for Water Air Liquid Gas
RJ10 OEM Stainless Steel Universal 19mm Piezoresistive Silicon Pressure Sensor for Water Air Liquid Gas
RJ10 OEM Stainless Steel Universal 19mm Piezoresistive Silicon Pressure Sensor for Water Air Liquid Gas
RJ10 OEM Stainless Steel Universal 19mm Piezoresistive Silicon Pressure Sensor for Water Air Liquid Gas
RJ10 OEM Stainless Steel Universal 19mm Piezoresistive Silicon Pressure Sensor for Water Air Liquid Gas
Specifications
Brand Name :
RUIJIA
Model Number :
RJ10
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD6.5-8.5/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
Within 2Weeks
Packaging Details :
Standard export packaging
Pressure range :
-100kPa...0~10kPa...100Mpa
Pressure reference :
Gauge | Absolute | Sealed
Supply :
1.5mA
Protection :
IP65
Material :
Stainless steel 316
Ambient temp :
-40℃~125℃
Description

RJ10 OEM Stainless Steel Universal 19mm Piezoresistive Silicon Pressure Sensor for Water Air Liquid Gas

RJ10 OEM Stainless Steel Universal 19mm Piezoresistive Silicon Pressure Sensor for Water Air Liquid Gas

material
stainless steel
Pressure range
-100kPa...0~10kPa...100Mpa
Pressure reference
Gauge | Absolute | Sealed
Supply
1.5mA
Temp. drift
≤±1.5%FS(@-20℃~85℃)
Ambient temp
-40℃~125℃
Protection
IP65
Material
Stainless steel 316
Certification
CE,ISo90001,RoHS
Response time
≤1ms (up to 90%FS)
Measured medium
All the liquids and gases compatible with 316L

Features
■ With constant current and constant voltage excitation options
■ Imported highly reliable pressure die
■ Wide temperature compensation
■ Normalized output available
■ Compensation board filled with glue for protection against moisture
■ Φ19mm standard OEM
■ All 316L material
■ High performance, all solid, high reliability
■ 18 months warranty period

Applications
■ Process control systems
■ Pressure calibration instruments
■ Refrigeration equipment and HVAC control
■ Hydraulic systems and valves
■ Level measurement
■ Biomedical instruments
■ Ships and navigation
■ Aircraft and avionics systems
■ Weaponry
Product overview
RJ10 piezoresistive silicon pressure sensor is the core component for the manufacture of pressure sensors and pressure transmitters.
As high-performance pressure sensitive component, RJ10 can be easily amplified and assembled into the pressure transmitters with standard signal output. PC10 packages diffused silicon pressure sensitive die to 316L stainless steel housing.
External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil. Pressure sensitive die does not directly contact with measured medium, forming all solid structure of pressure measurement.
So the product can be applied to a variety of occasions, including harsh corrosive medium environment. RJ10 uses O-ring for pressure seal, which is easy to install.

The company can also undertake special customization based on the needs of users, such as pressure sensors of all welded structure, wide temperature compensation, high reliability, anti-shock and anti-vibration sensors, especially for national defense weapons and equipment.
Equivalent circuit
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!
Our Services

Service standards: we are committed to provide a high quality and responsive service to all clients

The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business

OEM available

FAQ

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.

4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
