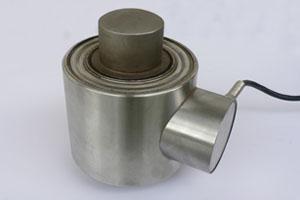

IP67 Waterproof Load Cells Column Type Stainless Steel Structure
IP67 Waterproof Load Cells Column Type Stainless Steel Structure
Specifications
Brand Name :
TOP SENSOR
Model Number :
CR-02
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pcs per month
Packaging Details :
1 unit per package
Product Name :
Waterproof Load Cells
Capacity :
10T-50T
Style :
Column Type
Price :
Negotiable
Description

IP67 Waterproof Load Cells Column Type Stainless Steel Structure

Canister Load Cell, Column Type, Compression Weighing

Model: CR-02

Capacity: 10T-50T

Features:

Canister Load Cell, Column Type,

The Weighing Capacity range from 10t to 50t,

Stainless Steel Structure, Good performance,

Laser Sealed, Water Proof to IP67,

Application: Suit for Truck Scale, Weigh Bridge and other electronic weighing equipment

Dimensions:(mm)

IP67 Waterproof Load Cells Column Type Stainless Steel Structure

SPECIFICATION

Accuracy:

C3

Rated Output:

1.5 ±0.003

Creep(%F.S/30min):

±0.02

Zero balance(%F.S):

±1.0

Input resistance:

700±5

Output resistance:

700±5

Insulation resistance:

≥5000(100VDC)

Temp. effect on span(%F.S/10℃):

±0.017

Temp. effect on zero(%F.S/10℃):

±0.02

Use temp. range(℃):

-20～+55

Excitation voltage(V)

9～12(DC)

Safety overload (%F.S)

150%

Ultimate overload (%F.S)

200%

Defend grade

IP67

Cable Length:

10 meters -20 meters

Wire Connection Method

RED=Input+

BLACK=Input-

GREEN=Output+

WHITE=Output-
Product tags

stainless steel load cell

,

anodized aluminum corrosion resistance

,

stainless steel water housing
