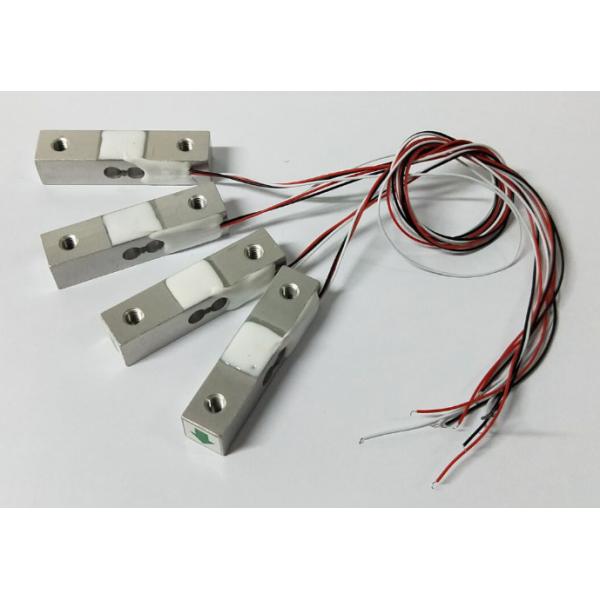

50kg Miniature Load Cell High Accuracy IP65 Waterproof Parallel Beam Type
50kg Miniature Load Cell High Accuracy IP65 Waterproof Parallel Beam Type
Specifications
Brand Name :
TOP SENSOR
Model Number :
SL-02
Certification :
CE
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T
Supply Ability :
50000 pcs per month
Delivery Time :
10-20 days
Packaging Details :
200 pcs per cartons,
Price :
Negotiable
Material :
Alloy Aluminum
Type :
Miniature Parallel
Related Load :
1-50kg
Water Protection :
IP65
Usage :
Weighing Scale
Product Name :
Miniature Load Cell
Description

High Accuracy Miniature Load Cell IP65 Water Protection Long Working Life

Micro Load Cell, Miniature Load Cell
Model: SL-02


CAPACITY: 1kg-50kg

Features:
Alloy Aluminum material, High Precision, Colourless anodized, small size, low costs
Parallel Beam type, easy installation, suitable for electronic kitchen scales

Load Cell Dimensions:

50kg Miniature Load Cell High Accuracy IP65 Waterproof Parallel Beam Type

SPECIFICATION
Precision: 0.05% FS
Rated Output: 1.0 ±0.01
Creep(%F.S/30min): ±0.05
Zero balance(%F.S): ±1.0
Input resistance: 1000±10
Output resistance: 1000±5
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.03
Temp. effect on zero(%F.S/10℃): ±0.03
Use temp. range(℃ ): -20～+40
Excitation voltage(V): 9～12(DC)
Safety overload (%F.S) 150%
Ultimate overload (%F.S) 200%
Defend grade IP67
Cable Length: 220 -660 mm
Wire Connection Method
RED=Input+ BLACK=Input- GREEN=Output+ WHITE=Output-

50kg Miniature Load Cell High Accuracy IP65 Waterproof Parallel Beam Type
