Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand
Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand
Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand
Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand
Specifications
Brand Name :
BH
Model Number :
JGB
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
By Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
25 sets per month
Delivery Time :
120 days
Packaging Details :
Seaworthy Packing For Export
Name :
Wire Cable Skip Type Stranding Machine
Reels :
500 700 etc
Materials :
Copper, Aluminum wire and Steel wires
Max. stranded conductor OD :
φ35-55 mm
Rotating Speed :
1000 r/min
Motor Power (JGB-800) :
55 KW
Guarantee period :
12 Months
Equipment painting :
As requirement
Description

Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand

1. Application
The skip type stranding machine is used for stranding copper, aluminum wire and steel wires.Bow type structure, totally 7 support boxes support 6 pairs of stranding bows on each pair end. The bow material is carbon fiber, which is durable. The machine is equipped with wire-break test device for each payoff unit in each bow. When wire is broken, and payoff bobbin will decrease the rotating speed, then the detector will get the data, then the machine will stop automatically. This will detect the 99% wire broken.
2. Main technical parameters

Model (Skip Stranding Machine)

 JGB-630(500) JGB-700 JGB-800
Diameter of single wire

Copper

 φ1.8-5 mm φ2-5 mm φ2.5-5 mm

Aluminum

 φ2.0-5 mm φ2.5-5 mm φ3.0-5 mm

Galvanized steel wire

 φ1.0-4.0 mm φ1.2-4.0 mm φ1.5-4.0 mm

Maximum stranded conductor OD

 φ35-55 mm φ35-55 mm φ35-55 mm
Stranding Pitch

6 Bobbin Stranding Cage

 31.1-235.0mm 31.1-235.0mm 31.1-235.0mm
Max. Rotating Speed 6 Bobbin Stranding Cage 1000 r/min 800 r/min 700 r/min
Capstan

Capstan Wheel Diameter

 1200 mm 1400 mm 1400 mm

Maximum Haul-off Force

 10 T 10 T 12 T

Motor Power

 37 KW 45 KW 55 KW

Bobbin Size

 630*475*127 710*530*127 800*600*127

Center Payoff Bobbin

 630*475*127 710*530*127 800*600*127

Take-up Bobbin

 1250*950*80 1600*1180*80 1600*1180*80

Maximum Haul-off Linear Speed

 235 m/min 200 m/min 170 m/min

Central Height

 1000 mm 1000 mm 1000 mm

3. Mechanical and electrical components
3.1 AC driver is from the Danfoss brand
3.2 PLC adopt Siemens
3.3 Touch screen is from Siemens
3.4 Motors are from Siemens
3.5 The bearings are from NSK
3.6 The main low voltage electric components are from high quality and well-known Chinese brands


4. Photos

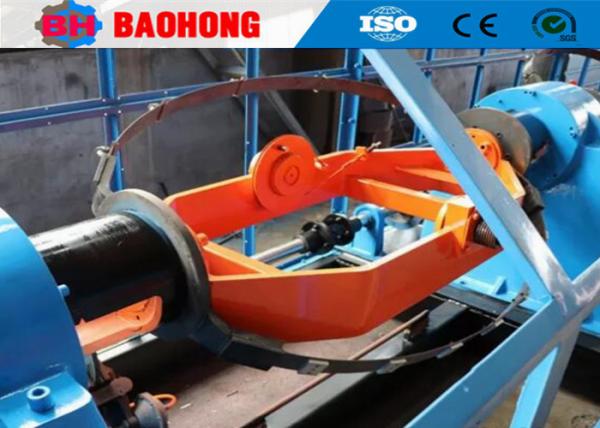

Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand

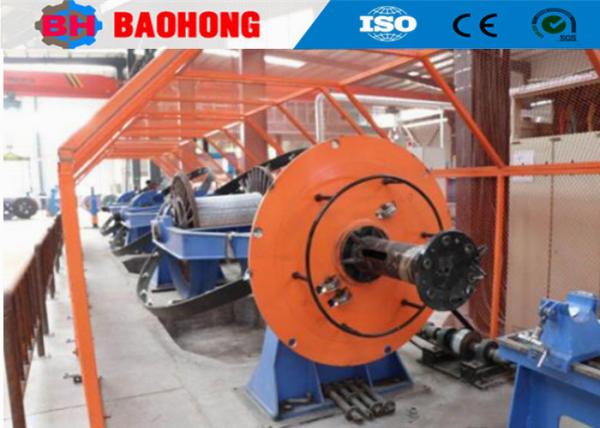

Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand

5. Packing photos
Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand

6. Our factory and introduction
Copper And Steel Wire Cable Skip Type Stranding Machine Galvanized Steel Strand

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.


Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China
