Rigid Type Aluminum and Copper Stranding Machine With auto loading/Cable making machine
Rigid Type Aluminum and Copper Stranding Machine With auto loading/Cable making machine
Specifications
Brand Name :
BH
Model Number :
JLK
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
By Negotiation
Payment Terms :
T/T, L/C, D/P, D/A
Supply Ability :
20 sets per month
Delivery Time :
100 days
Packaging Details :
Seaworthy Packing For Export
Product name :
Rigid Type Aluminum and Copper Stranding Machine With auto loading/Cable making machine
Use for :
Wire stranding
Drum sizes :
500 / 630 / 710
Material :
Steel,Cu,Al
Bobbin loading :
Side bottom type
Touch screen brand :
SIEMENS
Machine color :
Optional
Guarantee time :
12 Months
Description

500 630 710mm Rigid Type Aluminum and Copper Stranding Machine With auto loading/Cable making machine Low Noise Fast Delivery

1. Application

The machine is mainly used for stranding and pressing of sector conductor, stranding and drawing and pressing of round conductor.

2. Features

2.1.No abrasion damage when stranding.

2.2.Most advanced emergency stop device.

2.3.Suitable for power cables and high compacted cross linking cables.

2.4.Siemens PLC control system, operating on touch screen.
2.5.The broken wire alarm signal is transmitted by pulse, and the broken wire stop rate is 100%.

2.6Cabinet type touch screen operation desk, which is convenient for operation and beautiful in form.

2.7Rectangular square tube is used as the reinforcement of the main strander to avoid the jitter of the single plate.

3. Technical datas

Model (Rigid Stranding Machine) JLK-500 JLK-630 JLK-710/720
Diameter of single wire Copper φ1.5-5 mm φ1.5-5 mm　 φ1.5-5 mm　
Aluminum φ1.5-5 mm φ1.5-5 mm φ1.5-5 mm
Maximum stranded conductor OD φ35-55 mm φ35-55 mm φ35-55 mm
Stranding Pitch 6 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm
12 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm
18 Bobbin Stranding Cage 44-793 mm 63-1056 mm 57-1012 mm
24 Bobbin Stranding Cage 51-924 mm 71-1246 mm 66-1190 mm
30 Bobbin Stranding Cage 57-1028 mm 87-1553 mm 79-1403 mm
Rotating Speed 6 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min
12 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min
18 Bobbin Stranding Cage 208.5 r/min 155 r/min 142.6 r/min
24 Bobbin Stranding Cage 179 r/min 130.1 r/min 122.3 r/min
30 Bobbin Stranding Cage 161.8 r/min 115.9 r/min 102.7 r/min
Capstan Capstan Wheel Diameter 2000 mm 2000 mm 2000 mm
Maximum Haul-off Force 30 T 30 T 40 T
Pre-spiral Device Pitch 500-2500mm 500-2500mm 500-2500mm
Motor Power 90-180 KW 110-180 KW 130-180 KW
Bobbin Size 500*375*127 630*475*127 710*530*127
Center Payoff Bobbin 1600*800*80 1600*800*80 1600*800*80
Take-up Bobbin 2500*1500*125 2500*1500*125 3150*1900*160
Maximum Haul-off Linear Speed 69 m/min 69 m/min 62 m/min
Central Height 1000 mm 1100 mm 1100 mm

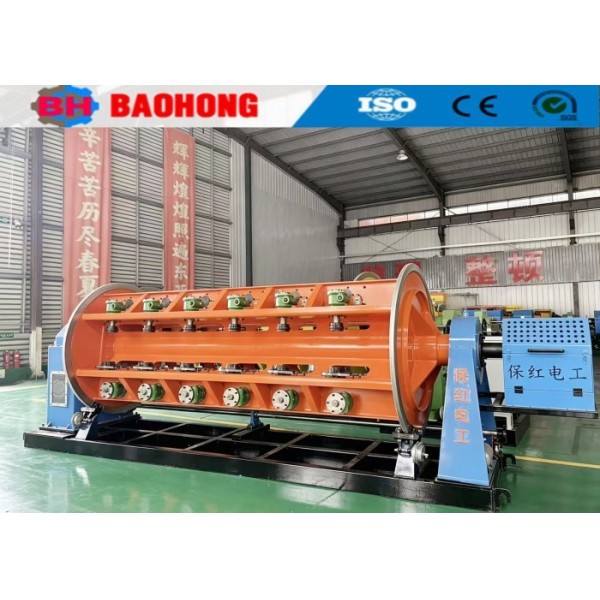

4. Photo

Rigid Type Aluminum and Copper Stranding Machine With auto loading/Cable making machine

Rigid Type Aluminum and Copper Stranding Machine With auto loading/Cable making machine

5. packing photo

Rigid Type Aluminum and Copper Stranding Machine With auto loading/Cable making machine

6. Our factory and introduction

Rigid Type Aluminum and Copper Stranding Machine With auto loading/Cable making machine

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
