Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPET
Place of Origin :
CHINA
Certification :
CE SGS ISO
MOQ :
1 SET
Delivery Time :
50-60 Days
Total Power :
120KW
Material :
PET
Application :
Sheet, Strap, Pipe, Packaging Band, Tape And Strap
Power Supply :
380V/50Hz
Strap Tension :
>850kg
Strap Width :
5-19mm
Strap Thickness :
0.4-1.2mm
Automation :
Automatic
Description

JIATUO Auto Packing PP PET Plastic Strap Making Machine CE ISO

PET Strap Extrusion Machinery 5-19mm Strap Width 50-600kg/h Extrusion Capacity

Description

Product Type:

PET Packing Belt Production Line

Raw Material:

100% Cushed PET Straps Or Wash Flake

Application:

Waste Paper, Steel Pipe, Steel Coil, Medical

Main Extruder:

Single Screw Extruder

Driven Type:

Electric

Automation:

Automatic

Processing Type:

Extruding Machine

Engagement System:

Engagement System

Motor Brand:

Siemens Beide

After-sales Service Provided:

Video Technical Support, Online Support

Warranty:

1 Year

High Light:

Plastic Strap Making Machine CE ISO

,

CE ISO PP Strap Making Machine

,

JIATUO PET Plastic Strap Making Machine

Auto Packing PP/PET Strapping Band Belt Extrusion Machine Production Line

PET Strap Extrusion Machinery 5-19mm Strap Width 50-600kg/h Extrusion Capacity
PRODUCT DESCRIPTION

PET Strap Extrusion Machinery 5-19mm Strap Width 50-600kg/h Extrusion Capacity

PET PP packing strap production is a new model of packing material machine, applying to advanced technology overseas. PET packing strap is the best replacement for old packing material, and is accepted in word packing industry. Nowdays, the PET PP packing strap hasebeen widly used in many industry such as paper steel, chemical fiber, cotton, printing wood and so on.

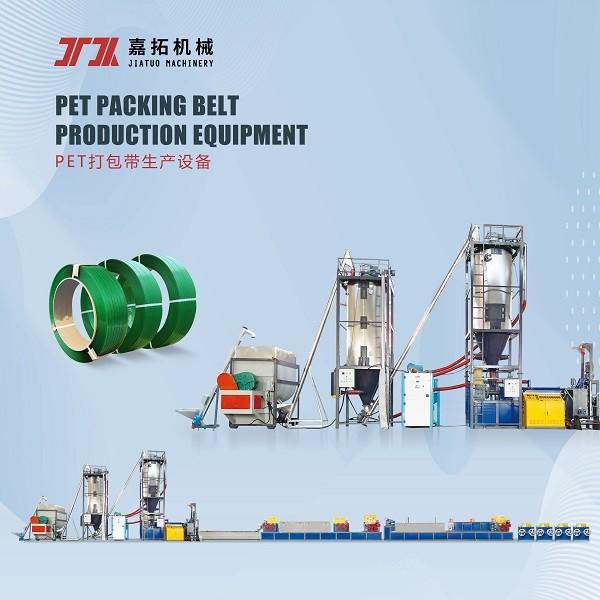

PET Strap Production Line Machine List

Item

Quantity

1.Lifting mixing drying system and screw feeding system

1 set

2.450 type dehumidifier and drying crystallization tank

1 set

3. single screw extruder

1 set

4.high-power screen changer

1 set

5.metering pump with independent speed regulation system

1 set

6.Special mould for PET strap band

1 set

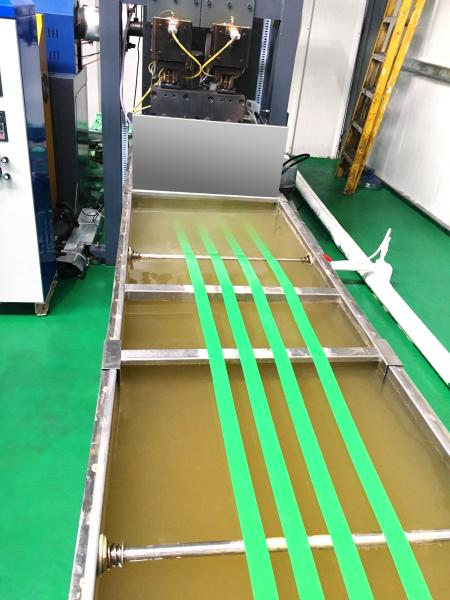

7.Cooling water tank

1 set

8.The first five-roller tractor

1 set

9.Stretching oven

1 set

10.The second five-roller tractor

1 set

11.Embossing machine

1 set

12.The third five-roller tractor

1 set

13.Cooling sizing system

1 set

14.The fourth three-roller tractor

1 set

15.Single station semi-automatic winding machine

1 set

APPLICATION & FEATURES

PET Strap Extrusion Machinery 5-19mm Strap Width 50-600kg/h Extrusion Capacity

1.High tenslie strength,small percentage elongation, resistance to impact, not easy to be broken,cheap,good softness, connveninet operation,safe and reliable.

2.In the world,it is ideal substitute of steel belt.

3.It is widely used in papermaking,wooden products textile cotton and fibre,color metal,cannedproducts,chemical,metallurgy,powercable,aluminium.

Plastic shaped materials and other products and various kinds of trays.

4.The usage of the product is convenient.It can adopt common steel fastening for connection.

5.It also is suitable for various kinds of hand-operated of table packing machine and large auto packing machine of enterprises,

6.It adopts hot-melting connection.

PET Strap Making Production Line Function

1) PP PET raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;

2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;

3) With the multi-purpose machine, produce the PP PET straps in different specifications directly and dont need to change the mould head;

4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;

5) Low Energy consumption, but high production capability;

6)Easy to operate, save the manpower and two persons for one production line on average.

ABOUT OUR COMPANY

Shenzhen Jiatuo Plastic Machinery Co., Ltd, specilizing in PP & PET Strap production and development for more than 20years.

Products consist of PET/PP Strap Making Machine, Rattan Making Machine, Handheld Strapping Machine, Plastic Coating Machine, high-precision Plastic Embossing Roller, PP & PET Strap Winder, Tensile Testing Machine, Strap Printing Machine, Plastic Extrusion Screen Changer, Extrusion Machine Parts, automatic suction machine, screw feeder, crusher, etc; Automatic wrapping machine, automatic packing machine for all bags, automatic packing machine for all bags and automatic packing machine for all bags; High grade, high-strength and environment-friendly PP baling machine, PP packing belt, pet plastic steel belt and other packaging materials.

The target of Jiatuo Machinery Co., Ltd. is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by
Jiatuo Machinery Co., Ltd. to new and old friends.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
