Microcomputer Control Tensile Testing Machine For PP Packing Belt
Microcomputer Control Tensile Testing Machine For PP Packing Belt
Microcomputer Control Tensile Testing Machine For PP Packing Belt
Microcomputer Control Tensile Testing Machine For PP Packing Belt
Microcomputer Control Tensile Testing Machine For PP Packing Belt
Microcomputer Control Tensile Testing Machine For PP Packing Belt
Specifications
Brand Name :
Tensile tester
Model Number :
JT-testing
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-10days
Packaging Details :
plastic film
Warranty :
1 year
Customized support :
OEM
Power :
Electronic
The maximum testing force :
500KG
Speed of testing :
0.01～500 mm/min
Machine dimension :
370×310×1020mm
Weight :
35kgs
Application :
PP
Print :
can print testing report
Effective stretching space (mm) :
460mm
Host power :
1∮，220V/50HZ，5A (can assign according to customer)
Load Accuracy :
±0.3%
Unit :
g、kg、Ib、N、KN
Description

Microcomputer Control Tension Tensile Breaking Strength Testing Machine For PP

Description of tensile testing machine:

This machine is a simple tensile testing machine with simple structure and convenient operation, which can be placed on the workbench for testing. The electronic control system is used to control the rotation of the speed-regulating motor by the governor, and then the T-screw is driven to drive the load sensor to rise and fall after deceleration by the variable-speed mechanical mechanism to complete the tensile or compression test of the sample. The force value is output by the sensor, the feedback display is displayed, and the test displacement is displayed in real time. It can store the results of 10 test reference points, automatically calculate the average value, automatically grab the value, and the force value when breaking. The machine includes a thermal printer, which can automatically output the test results. (optional) This machine is easy to operate and is suitable as a testing instrument for product quality control on the production line. This series of models is mainly suitable for non-metallic and metal material tests with a test load of less than 850kg for PP packing belt.

System Configuration of the Testing Line:

NO. Name Quantity
1 microcomputer controlled tension testing machine 1 set
2 silicone protection sleeve 1 pcs
3 sensor 1 pcs
4 clamp 1 set
5 power cable 1 pcs
6 specification 1 set
7 quality guarantee 1 pcs
8 warranty card 1 pcs

Technical parameter of tensile testing machine:

Maximum test force (N) 500KG
Return function It will come on origin point when finfished to test
Unit g,kg,Ib,N,KN
Load Accuracy ±0.3%
Speed of testing 0.01～500 mm/min
Safety protection device Mechanical limit protection and software overload
protection
Effective stretching space (mm) 460mm
Stretching fixture According to material selection
Mainframe dimensions (mm) 370×310×1020mm
Host power 1∮,220V/50HZ,5A (can assign according to customer)
Host weight (KG) 35KG

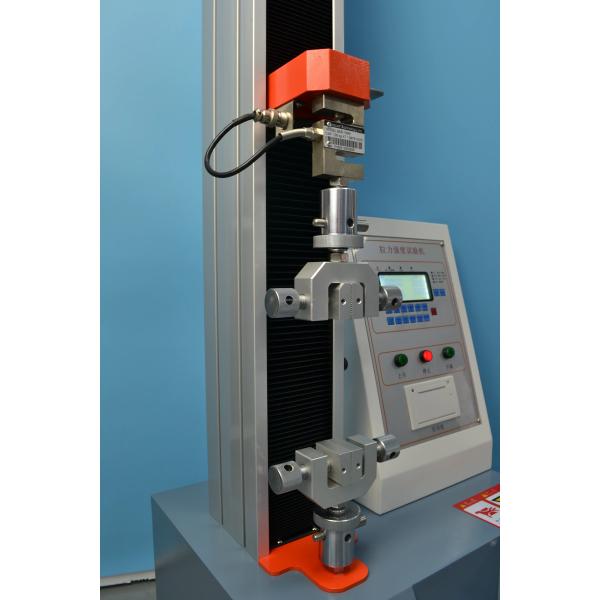

Detailed Images:

Microcomputer Control Tensile Testing Machine For PP Packing Belt
Microcomputer Control Tensile Testing Machine For PP Packing Belt
