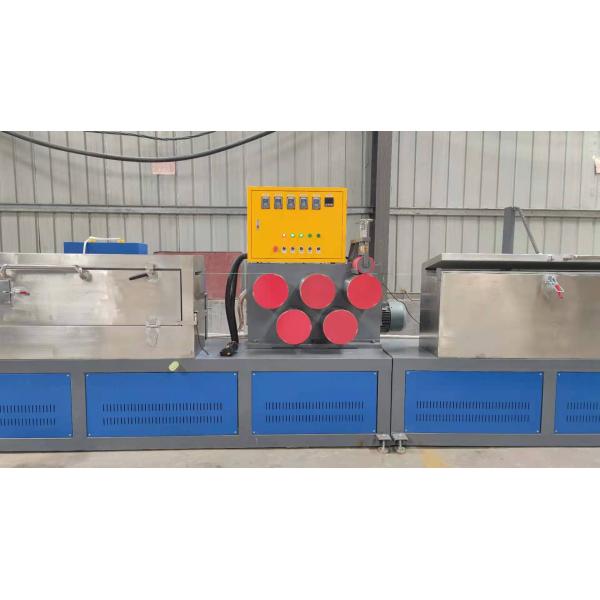

Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPET-90
Certification :
ISO/ CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
50-60DAYS
Packaging Details :
Plastic film
Plastic Processed :
PET
Screw diameter (mm) :
90MM
production capacity :
180-220kgs/H
Warranty :
1 years
Number of extruded strap :
2
Application Scope :
Brickyard, metal, steel, aluminum,brewery
screen changer :
two-way cylinder / single cylinder
Thickness range :
0.6-1.2mm
Width range :
9-32mm
Applicable raw materials :
bottle flake material, 100% broken material
Control systems :
PLC Chinese/English control system
Motor power :
SIMENS
Inverter :
INVT
Winding paper core :
￠406*150mm
Screw Design :
Single-screw
switch and other electrical :
Schneider
Power :
200KW
Running power :
110-120KW
Description

Screw Dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder

PET Plastic Packing Belt Double Output Making Machine Two-Way Cylinder

PET Packing Strap Production Line:

PET packing strip, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.

Parameters of PET 1 to 2 production machine:

Item

JTPET-90

Screw design

Single screw

Straps Qty.

2 straps

Output/Day

5.5-6T/24 hours

Screw Dia.

90mm

Winder Qty.

2 sets

Material used

100% Recycled Bottle Flakes/Virgin Material/mixed with

Running power

110-120kw

Installed power

200kw

Strap specifications

Width 9-32mm thickness 0.6-1.2mm

Workshop area

L (55m) ×W (2m) ×H (7m)

Electric components

Schneider

Materials

PET raw material or 100% PET bottle flakes recycled

Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder

Advantages for PET Making Machine:

  • Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs.

  • Process 100% recycled PP/PET bottle flakes or pellets.

  • Even plasticization and stable extrusion with PLC automatic control for the full line.

  • As per different requirements, changing a coating materials for make strap have better and special function. For example, thestrap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.

  • Melt filter with two pistons with air venting design and back flushing.

  • Hengli winding system, unique design parameters, in line with high yield, excellent winding effect, two sides flat and beautiful.

​

​

PET strapping finished products:

Screw dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
