3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability
3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability
3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability
3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability
3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability
3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability
Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPP-100
Certification :
ISO/ CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
50-60DAYS To be negotiated
Packaging Details :
Plastic film
Plastic Processed :
PP
Screw diameter (mm) :
100mm
production capacity :
180-220kgs/H
Warranty :
1 years
Number of extruded strap :
3
screen changer :
Automatic/handle
Thickness range :
0.4-1.2mm
Width range :
5-19mm
Applicable raw materials :
100% recycled material
Keywords :
Strap Making Machine Production Line
Key Selling Points :
High Productivity
Winding :
Fully automatic/ semi automatic
Inverter :
IVNT
Motor :
Siemens
Winder :
3 set
Worn parts :
Provide some for free
Extruder :
Single screw extruder
Screen changer :
Automatic/ manual
Description

IVNT Inverter PP Strap Band Extrusion Line With 5-19mm Width Range

Description

PP strapping band extrusion machine production line

PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.

1.PP packing belt equipment is suitable for PP polypropylene new material and recycled material;
2. The packaging belt produced has large tensile strength, does not split, and has high market recognition;
3. The packaging belt produced is well shaped, the width and straightness are even, and can reach the automatic packaging level;

3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability

Machine parameters

PP Band 4straps Extruding Machine

Motor power 37kw
Screw diameter 100mm
Production line size

L (36m) ×W (2m) ×H (4m)
Band width range 5-19mm
Product thickness 0.4-1.2mm
Line speed 180m/min
Extrusion ability 180-220kgs/H

PP strap band production machine

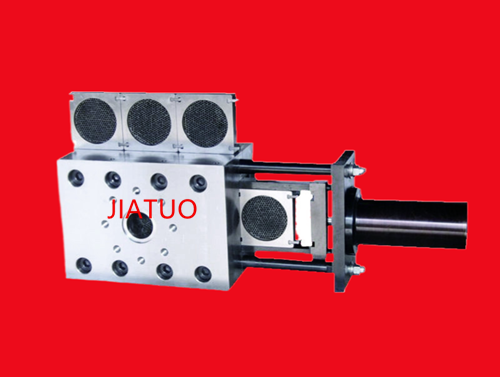

Description of automatic net changer:

The structural advantages of the PP strapping screen changer: it is made of special alloy materials through strict forging, surface heat treatment and precision metal processing technology; it adopts high-quality heat treatment technology and strict quality control system to ensure the durability of the product; the PP strapping screen changer optimizes the structural design to realize the filter preheating and material feeding function, and completely eliminates the fluctuation of melt pressure and temperature during the screen changing process; it completely eliminates bubbles and impurity defects; the optimized filter support plate structure is easy to clean and replace, and completely eliminates product defects caused by resin aging spots; a variety of heating methods are designed to ensure the stability of resin pressure and material flow during the screen changing process. It is equipped with a non-stop screen changer, and the screen can be changed without stopping. It increases production capacity and is simple to operate, which is worth choosing.

3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability

Application

PP packing straps making machine
Materials: PP material, or 100% recycling pp flakes and granules.
This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit, electrical (such as refrigerators, washing machines, color TV), food and other industries.Based on the reinforced strapping band unit, is specially used for the top-grade light weight products with good quality, light gram weight and well rigidity. Its high-speed low-temperature stretching technology and optimized structure may reduce energy consumption to the maximum extent, simplify operating procedure and realize digital displayed accurate control. The unit has advantages of energy saving, great extrusion pressure, optimal embossing effect, high output, good formation, convenient maintenance, simple operation, safety and reliability. The single-band unit is an ideal device that is used to manufacture top-grade light weight strapping band. This unit is applicable to PP fresh material and used for producing light weight strapping band.

3 Straps PP Band Extruding Machine With 37kw Motor Power 180-220kgs/H Extrusion Ability

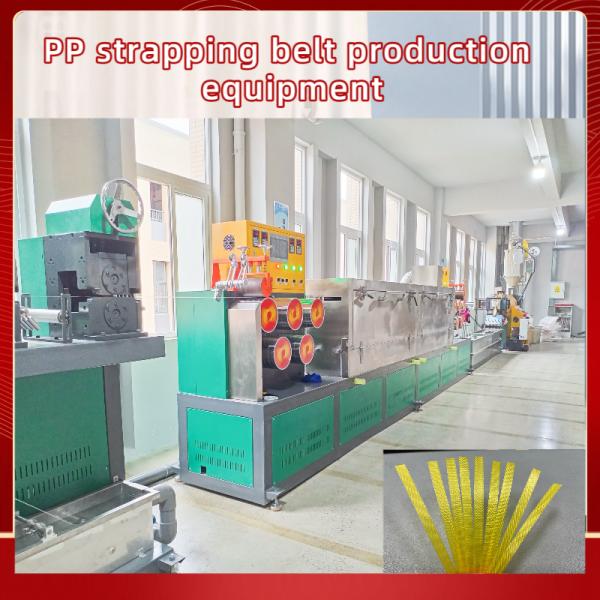

PP Packing Belt Extrusion Line

  1. PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
  2. Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
  3. Low Energy consumption, but high production capability;
  4. Easy to operate, save the manpower and two persons for one production line on average
