9-32mm PET Strap Manufacturing Machine Plastic Strap Packing Machine
Quick Detail Of PP Strap Making Machine
Name: PET 1 to 6 strapping production line
Applicable raw materials: PET raw material or 100% PET bottle flakes recycled
Number of screws: 1 Screw
Number of extruded belts: 1, 2, 4, 6
Width range: 9-32mm
Thickness range: 0.6-12mm
Production capacity: 200kg/h 250kg/h 350kg/h
Installation size: 35m*(3~6)m*(4~6)m or 45m*(3~6)m*(4~6)m
Specification Of PET Strap Production Line
NO. | Item | Specification |
1 | Power | According to customer's factory voltage |
2 | Material | PET raw material or 100% PET bottle flakes recycled |
3 | Capacity | PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
4 | Product size | Width:9-32mm Thickness:0.6-12mm |
6 | Mid-height of extruder | 7000mm |
7 | Installation power | PETJT90:200KW PETJT100:250KW PETJT125:300KW |
8 | Humidity | <85% |
9 | Temperature | 0-40 degree |
10 | Cooling tower capacity | 30T/H or 50T/H |
11 | Installation Dimensions | PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
12 | Product color | Green/Black/Pink/Yellow |
13 | Factory dimension | 35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |

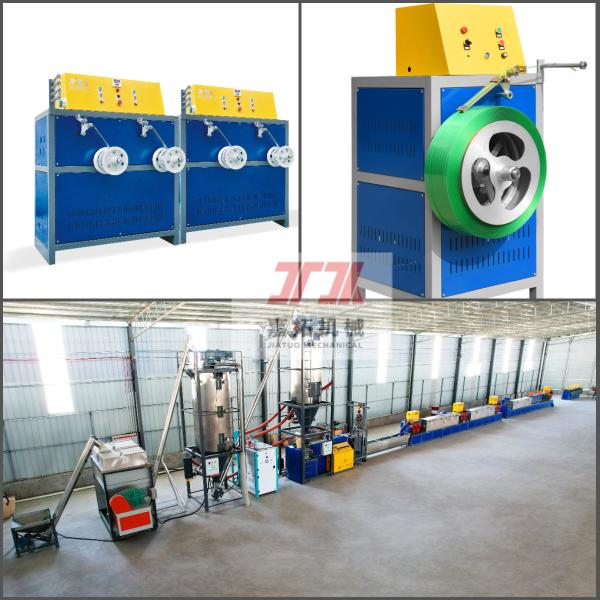

Overall picture of PET Strapping Machine
Advantages of PET strapping extrusion production line
1. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making
2. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn't need to change the mould head
3. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy to operate, saves manpower
Features of PET packing strap production line:
