Specifications
Brand Name :
JIATUO CHINA
Model Number :
JTPET-150
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
50-60DAYS To be negotiated
Packaging Details :
Plastic film
Core Components :
Motor, PLC, Gearbox, Screw
Automatic Grade :
Fully automatic/ semi automatic
Machinery Test Report :
Provided
Screw style :
Single screw extruder
Temperature control :
Taiwan Fotek
Motor :
SIMENS
Control systems :
PLC Chinese/English control system
Number of extruded strap :
6
Production capacity :
580-620KGS
Warranty :
1 year
Screw diameter (mm) :
150mm
Strap Width :
9-32mm
Thickness :
0.4-1.2mm
Application Scope :
Brickyard, metal, steel, aluminum,brewery
Screen filter :
two-way cylinder / single cylinder
Screw Material :
38CrMoALA
Description

PLC Control Plastic Steel Packing Polyester PET Strapping Tape Belt Making Machine 580-620KGS/H

PET strap production line configuration reference

Item Name Quantity
1 Dehumidification and drying system 1 set
2 Oil and dust filter 1 set
3 Horizontal mixer(5000L) 1 set
4 Pre-drying tower(5000L) 1 set
5 Screw Feeder 3 set
6 Barrel(5000L) 1 set
7 ¢150mm Extruding Machine 1 set
8 Melt pump 1 set
9 Single cylinder filter 1 set
10 PET Mould output 6straps 1 set
11 Cooling water tank 1 set
12 Stretching oven 1 set
13 Five roller gearbox 3 set
14 PLC electrical control system 1 set
15 Forming oven 1 set

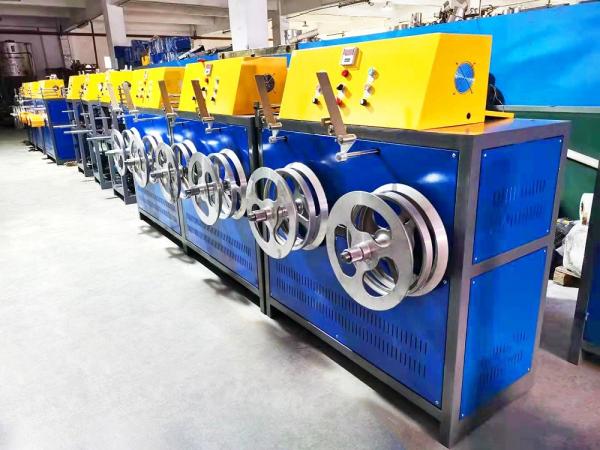

16 Double disk winder

6 set

PLC Control PET Strap Extrusion Line 580-620KGS/H PET Strap Making Machine 580-620KGS/H PLC Control PET Strap Extrusion

Application

PET belts production machine:

It is mainly suitable for packaging for various trades. The use of the product is convenient and it can adopt common steel fastening for connection. It also is suitable for various kinds of hand-operated of table packing machine and large auto-packaging machine of enterprises.

PLC Control PET Strap Extrusion Line 580-620KGS/H PET Strap Making Machine 580-620KGS/H PLC Control PET Strap Extrusion

PLC Control PET Strap Extrusion Line 580-620KGS/H PET Strap Making Machine 580-620KGS/H PLC Control PET Strap Extrusion

Process flow

PET packaging belt production line:

① feeding→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ cooling → ⑬winding(finished product)

PLC Control PET Strap Extrusion Line 580-620KGS/H PET Strap Making Machine 580-620KGS/H PLC Control PET Strap ExtrusionPLC Control PET Strap Extrusion Line 580-620KGS/H PET Strap Making Machine 580-620KGS/H PLC Control PET Strap Extrusion
