Automatic Two-Way Cylinder PET Strap Manufacturing Machine 180-620KGS

Product Description

PET strap making machine

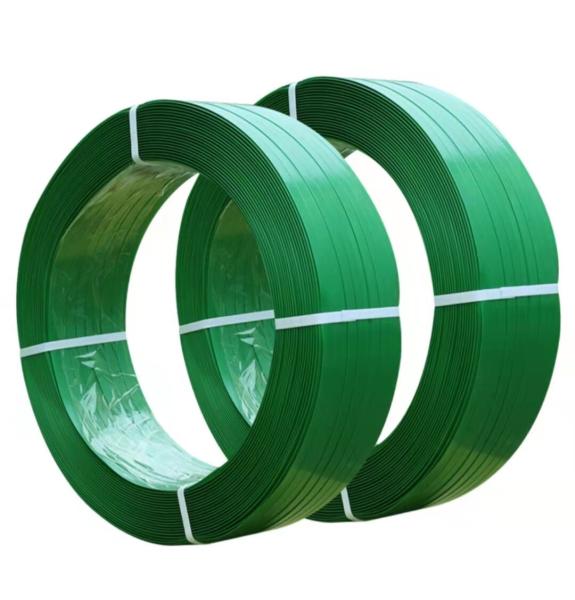

PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.

Heavy duty equipment can be used for two, three, four and six straps production.

Main technical parameters

PET strap production machine

Machine List

PET strap Extrusion Machine

※ Dehumidification and drying system 1 set

※ Oil and dust filter 1 set

※ Horizontal mixer(3000L) 1 set

※ Pre-drying tower(3000L) 1 set

※ Screw Feeder 3 set

※ Barrel 1 set

※ ¢90mm Extruding Machine 1 set

※ Melt pump 1 set

※ Single cylinder filter 1 set

※ PET Mould output 2straps 1 set

※ Cooling water tank 1 set

※ Stretching oven 1 set

※ Five roller gearbox 3 set

※ PLC electrical control system 1 set

※ Forming oven 1 set

※ Double disk winder 2 set (The number of it will varies depending on the type machine you choose)

Features

PET Strap Extruder Making Machine

• Raw material process and extrusion system.
• High performance crystallizing and drying system.
• Production can use 100% recycled material to obtain a high add value strapping band.
• 100% full automatic self-cleaning screen changer.
• PLC Control ,Remember the previous production parameters not influence the production quality.
• Special designed hot air stretching oven.
• Configured with heating unit and automatic temperature control system.High performance heat insulating layer.
• Better on strip stretching and heating, rapid heating, complete strip orientation stretching.

Machine Pictures
