Specifications
Brand Name :
JIATUO
Model Number :
JTPP-90
Certification :
CE, ISO
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
50set/month
Delivery Time :
50~55 working days
Packaging Details :
plastic film or other standard package for sea shipping
Product type :
PP Packing Belt Extrusion Line
Raw material :
Polypropylene PP raw material pellets, recycled pellets
Screw design :
Optional
Processing type :
Extruding Machine
Twin Screw Type :
Co-rotating Parallel Twin-screw
Equipment power :
100KW
Output :
200KG per hour
Driven Type :
Electric
Application :
Packaging Strap
Automation :
Automatic
Warranty :
1 Year
Description

Automatic Feeding System High Output Single Screw 4 Straps PP Strap Making Machine

PRODUCT DESCRIPTION

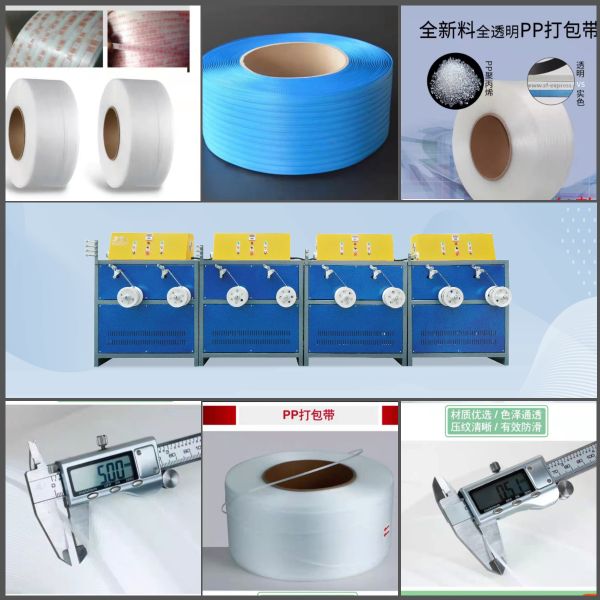

PP strap band extrusion line is mainly for producing PP strap.
The raw material can be 100% recycled material,which can reduce the produce cost and get a good profit. And the Pp bale is the substitution of the steel strap and has a lot of advantages such good extension,high temperature resistant,easy use.

1. Total equipment power: 100KW

2. Equipment footprint: 38*2.0*4.0M

3. Capacity: 200kg per hour

4. The equipment voltage is: three-phase 380v/50Hz

5. Equipment bearing TR brand

6. Intelligent temperature control instruments, heating solid state relays, tachometers, counters, and code counters adopt Taiwan Yangming brand, and switches and AC contactors are equipped with Schneider brand.

7. All shafts are heat treated and grinder finished

8. The fuselage frame adopts 100*100*2.5 mm (pass national standard square)

The appearance of the whole machine has been optimized and designed, which is beautiful, high-quality and high-grade, and is durable.

Product Name PETΦ120A ONE SCREW 4 STRAPS OUTPUT PRODUCTION LINE
Suitable Materia 100%PET bottle flak ( Material size about10-16MM)
Strapping Pcs: 4pcs
Strapping Size:
width/thickness(mm)5-19/0.4-1.2
Grade
A, fully automatic packing machine use grade Straps
Production Capacity
300-380 kg/h

JIATUO PP Strapping Roll Making Machine Single Screw 7000M Manufacturing

APPLICATION & FEATURES

1. It is a high tech enterprise which is specialized in research, manufacture and marketing plastic recycling machine, pp strap making machine, plastic strap extruder line, pp strapping band production and pet recycling line, plastic washing and recycling line.

2. Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and
Parallel Twin Screw Extruder.

3. Our plastic extruder machine many kinds of plastic productions like: plastic granules, plastic pellets, pp strap, strapping band, pp tape band , plastic strap and so on.

4. Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.

5. Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.


JIATUO PP Strapping Roll Making Machine Single Screw 7000M Manufacturing
DETAILED PARAMETER

  • Feeding machine include:

1. Suction machine: 1 set

2. Feeding bucket 150KG: 1 pcs

3 . Feeding machine: 2 set

  • Main machine

1. Gearbox model: 225
2. Screw: 110*3300mm in diameter, with the advantages of large extrusion volume, good plasticization, high hardness and high wear resistance;
3. Motor power: 37kw Siemens motor
4. Screen changer: 150 type (can change the screen without stopping) Zhengzhou Anji
5. Discharging die: one out four die
6. Host inverter: 37kw (INVT)
7. Thermostat and solid state relay: (Taiwan Yangming)
8. Switches and other electrical appliances: (Schneider)

JIATUO PP Strapping Roll Making Machine Single Screw 7000M Manufacturing
