Single Screw Recycled PP Strap Band Making Machine For Packaging Industry
Single Screw Recycled PP Strap Band Making Machine For Packaging Industry
Single Screw Recycled PP Strap Band Making Machine For Packaging Industry
Single Screw Recycled PP Strap Band Making Machine For Packaging Industry
Single Screw Recycled PP Strap Band Making Machine For Packaging Industry
Single Screw Recycled PP Strap Band Making Machine For Packaging Industry
Single Screw Recycled PP Strap Band Making Machine For Packaging Industry
Single Screw Recycled PP Strap Band Making Machine For Packaging Industry
Specifications
Brand Name :
PP strap making machine
Model Number :
JTPP-90
Certification :
IS CEO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
30-40days
Packaging Details :
plastic film
Video outgoing-inspection :
Provided
Strap Tension :
Adjustable
Control system :
PLC Control System
Motor :
37KW(Siemens)
Key Selling Points :
Leading German And Japanese Advanced Technology
Winder :
Double Station Winder
Strap Core Type :
Paper/Plastic
Warranty :
1 Year
Material :
PP recycled material/New raw material
Thickness :
0.4-1.2mm
width :
5-19mm
Screen changer :
Automatic/Manual
Description

Single Screw Recycled PP Strap Band Making Machine For Packaging Industry

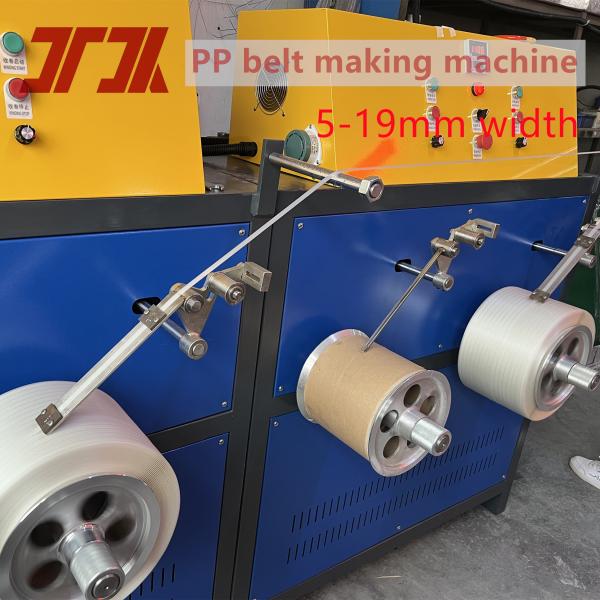

Technical Parameters of PP strap making machine

Strap Tension: Adjustable 50-250kg
Motor: 37KW(Siemens)
Plastic Processed: PP Strapping Tape
Screw diameter (mm): 110*3300mm
Applicable raw materials: PP Polypropylene New Material/recycled Material
Warranty: 1 Year
Application: PP Strap Making Machine
Key Selling Points: Leading German And Japanese Advanced Technology
Video outgoing-inspection: Provided
Trademark:

JiaTuo China

Feature of PP strap making machine

1. Better tensile strength: for our pp strap is around 50-240kg
2. High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging
3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ºC, can be used under the environment of 120 ºC for a long time not to distort,it has a good stability.
4. Environmentally friendly: the belt will rust due to exposure to the air, and the rust is highly permeable to the packaging.

Process flow of PP packing belt production line

Feeding → stirring → pre-drying → melting and measuring extrusion → embryo (belt embryo) cooling and forming → oven preheating → primary stretching → secondary stretching → embossening → oven tempering and setting → cooling → finished product winding

Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.

Single Screw Recycled PP Strap Band Making Machine For Packaging Industry

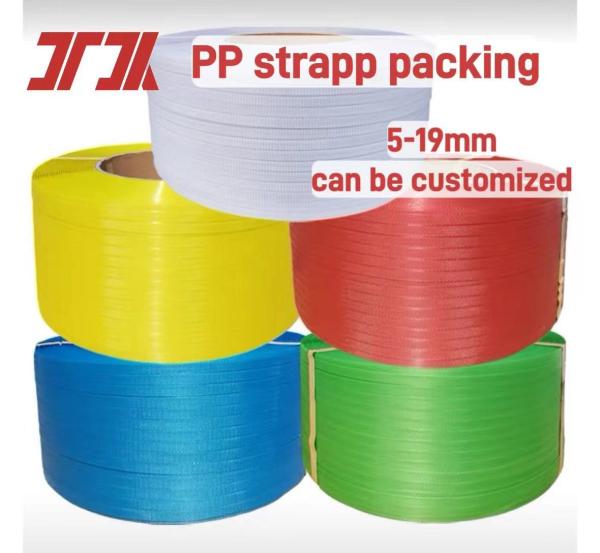

Applications of PP strap

1. The packing belt used for binding cement brick factory has high tensile strength and high temperature and cold resistance.

2. The packing belt used in aluminum steel strapping factory has high tensile strength, high temperature and cold resistance, and is not easy to break.

3. Chemical fiber packing belt, not easy to break, Packing belt for heavier products,pulling force up to 1000KG.

After Service

1.Free installation and debugging
2.Provide all kinds of product formula, technology and chemical material manufacturer information
3.According to the customer's requirements, provide technical guidance
4.Technical training for employees of customers
5. Responsible for maintenance service, door to door service if necessary.
