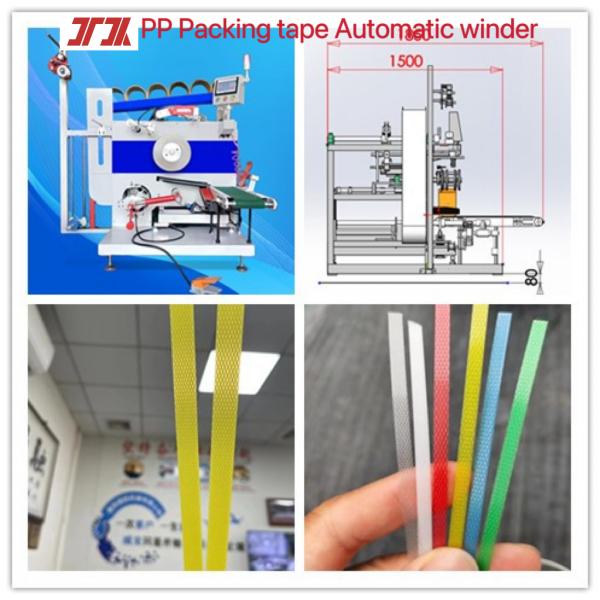

Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring
Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring
Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring
Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring
Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring
Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring
Specifications
Brand Name :
PP PET automatic winding machine
Model Number :
JTPET-100
Certification :
IS CEO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
30-40days
Packaging Details :
plastic film
Final product :
PP PET Packing Strap Belt
Voltage :
380V/50HZ （customized ）
Power :
45KW
Product Name :
PET Plastic Steel Belt Production Equipment
Color :
REQUIREMEN BY CUSTONMER
Capacity :
300-350KG/H(Customizable)
strap numer :
2-8 Strap
Warranty :
1 Year
Description

Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring

Product Description of PET plastic steel belt equipment:

Automatic PLC controlled single station PET/PP tape winder, this PP PET winder is suitable for tapes with extrusion speeds up to 180-300 m/min. Each machine is equipped with a reel. The machine is equipped with a reinforced tension arm to control the winding tension. The inclinometer fixed on the reinforced tension arm converts the physical position signal of the tension arm into an electrical signal and sends it to the programmable logic controller (PLC). After data processing, the PLC controls the running speed of the winding motor and drives the paper tube fixed on the winding shaft to evenly wind the tape with constant tension.

The winding process does not require manual operation, and there is no need to replace the transmission gear.

Automatic winding, automatic rewinding, automatic stop, and automatic roll change.

ARAMETER TABLE

Name Automatic Winding Machine
Tape width 9-32mm
Thickness 0.6-1.2mm
Control mode servo motor
Pressure 4-7kgf
PLC control YES
Paper tube Ø406*150/190mm
Max weight 20-350kg/roll
power single-phase 220V
Weight 700KG
Overall dimension (L)1400mm*(W)1200mm*(H) 1850mm

Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring

PLC control interface, simple parameter setting,

Product Parameters :
1.Product Name: PP PET Strapping Band Winding Machine
2.Power: 220V/380V/440V
3.PLC, touch screen: Xinjie
4.Power Consumption: 1.8KW
5.Feature: Full-automatic Winder
6.Automatic stop: YES

7.Servo winding machine, Servo motor line automatic winding machine, PET strap full-automatic winder
8.Machine size (mm): L1400*W1400*H1850
Different PET plastic steel belt weights can be customized according to customer requirements

Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring

About after-sales:

1. The warranty period of our fully automatic strapping machine is 12 months.

2. Our technicians support 24-hour online service.

3. Our fully automatic strapping machines are strictly inspected before leaving the factory and support connection detection.

4. Our fully automatic strapping machines are equipped with wearing parts.

5. Our fully automatic strapping machines can customize voltage and current according to customer requirements.

1. We have a professional production team and after-sales team.
2. Support online installation and debugging services (telephone/video).
3. Support installation line drawings.
4. Provide installation instructions.
5.Supply of spare parts and consumables
6.Upgrades and retrofits to improve productivity and efficiency

Plastic machinery PP PET automatic winding machine Automatic winding machine for neat wiring

FQA:

Q:What are the specifications of the PET automatic wrapping machine:

A:Width: 9-32mm; Thickness: 0.35-1.2mm;

Q:What is the control motor of the PET automatic wrapping machine?

A:Servo motor control

Q:What is the speed of the PET automatic wrapping machine?

A:150-250 meters/minute

Q:What is the control method of the PET automatic wrapping machine?

A:PLC control system

Q:What is the transaction method of the PET automatic wrapping machine?

A:TT,LC, negotiable.
