Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement
Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement
Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement
Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement
Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement
Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement
Specifications
Brand Name :
PP PET automatic winding machine
Model Number :
JTPET-100
Certification :
IS CEO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
30-40days
Packaging Details :
plastic film
Final product :
PET Packing Strap Belt
Voltage :
380V/50HZ （customized ）
Power :
45KW
Product Name :
PET Plastic Steel Belt Production Equipment
Color :
REQUIREMEN BY CUSTONMER
Capacity :
300-350KG/H(Customizable)
strap numer :
2-8 Strap
Warranty :
1 Year
Description

Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement

Product Description of PET plastic steel belt equipment:

1. Automation----Our fully automatic strapping machine has high efficiency in strapping products. No need for manual strapping, which can greatly improve production efficiency, reduce labor intensity and lighten your workload.

2. Failure rate---- Our automatic strapping machine is carefully designed to achieve excellent performance, with excellent strapping force, few failures and easy maintenance.

3. Wide range---- Our automatic strapping machine is specially designed for PP plastic strapping, suitable for medium and small weight cartons.

4. Fast speed----Our automatic strapping machine has a fast strapping speed of 2.0 seconds/strip.

5. Multiple modes---- Our automatic baling machine can use pedal mode, inching mode and continuous mode.

6. Hot bonding method---- bottom bonding, bonding surface ≧90%, bonding position deviation ≤2mm.


ARAMETER TABLE

Name Automatic Winding Machine
Tape width 9-32mm
Thickness 0.6-1.2mm
Control mode servo motor
Pressure 4-7kgf
PLC control YES
Paper tube Ø406*150/190mm
Max weight 20-350kg/roll
power single-phase 220V
Weight 700KG
Overall dimension (L)1400mm*(W)1200mm*(H) 1850mm

Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement

PLC control interface, simple parameter setting,

Product Parameters :
1.Product Name: PP PET Strapping Band Winding Machine
2.Power: 220V/380V/440V
3.PLC, touch screen: Xinjie
4.Power Consumption: 1.8KW
5.Feature: Full-automatic Winder
6.Automatic stop: YES

7.Servo winding machine, Servo motor line automatic winding machine, PET strap full-automatic winder
8.Machine size (mm): L1400*W1400*H1850

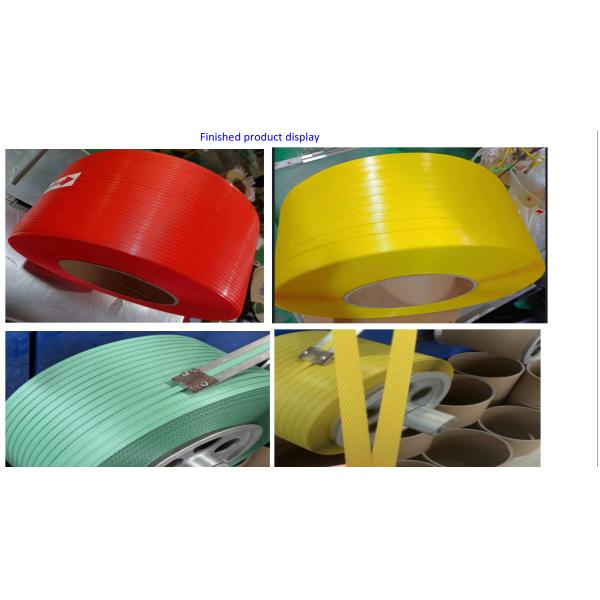

Different PET plastic steel belt weights can be customized according to customer requirements

Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for Automatic Cable Arrangement

About after-sales:

1. The warranty period of our fully automatic strapping machine is 12 months.

2. Our technicians support 24-hour online service.

3. Our fully automatic strapping machines are strictly inspected before leaving the factory and support connection detection.

4. Our fully automatic strapping machines are equipped with wearing parts.

5. Our fully automatic strapping machines can customize voltage and current according to customer requirements.

1. We have a professional production team and after-sales team.
2. Support online installation and debugging services (telephone/video).
3. Support installation line drawings.
4. Provide installation instructions.
5.Supply of spare parts and consumables
6.Upgrades and retrofits to improve productivity and efficiency

FQA:

Q:What are the specifications of the PET automatic wrapping machine:

A:Width: 9-32mm; Thickness: 0.35-1.2mm;

Q:What is the control motor of the PET automatic wrapping machine?

A:Servo motor control

Q:What is the speed of the PET automatic wrapping machine?

A:150-250 meters/minute

Q:What is the control method of the PET automatic wrapping machine?

A:PLC control system

Q:What is the transaction method of the PET automatic wrapping machine?

A:TT,LC, negotiable.
