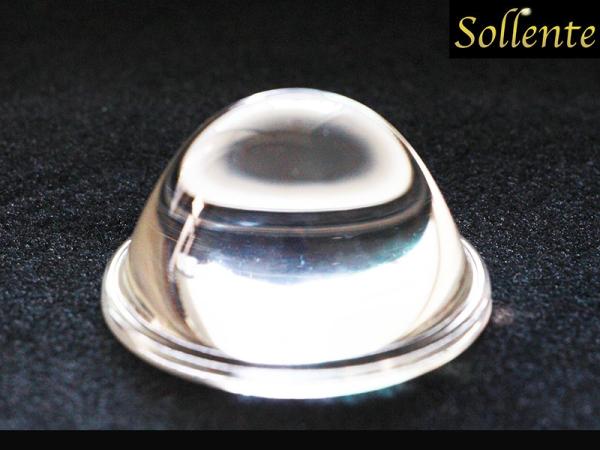

High Bay Light LED Glass Lens , Metal Holder COB LED Lens 50mm 40 Degree
High Bay Light LED Glass Lens , Metal Holder COB LED Lens 50mm 40 Degree
High Bay Light LED Glass Lens , Metal Holder COB LED Lens 50mm 40 Degree
High Bay Light LED Glass Lens , Metal Holder COB LED Lens 50mm 40 Degree
Specifications
Brand Name :
Sollente
Model Number :
SOE-HB50-40
Place of Origin :
China
MOQ :
10 sets
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Delivery Time :
3-14 working days
Packaging Details :
Carton Box
Product Name :
Led Glass Lens
Diameter :
50mm
Height :
28mm
Beam Angle :
40 degree
Match Led :
10-100W
Material :
Optical Grade High Borosilicate Glass
Working Temperature :
-50 to 450 °C
Transmittance :
91.6%
Accessories :
Lens, Gasket, Metal Holder
Description

50mm 40 degree Led glass lens , COB optical lens for high bay light

Quick Detail of Led glass lens:

1. Dimension: Dia 50mm Height 28mm

2. Beam Angle: 40degree

3. Match Led: 10-100w LEDs

4. Materials : Borosilicate glass

5. Accessories: Metal holder,silicon gasket

6. Chips Package size < 41mm

7. Application: Led high bay light, Flood light, Flashing light, Led Spot Light

Specifications:

Product Name 50mm 40 degree Led glass lens , COB optical lens for high bay light
Model No SOE-HB50-40
Main parts Optical glass Lens+silicone gasket+metal holder+Multichip LED+Driver
Lens Material Borosilicate Glass
MOQ 10pcs
Lens size 50mm
Sample 3 days
Delivery 7-9 days
Certificate ROHS, SGS
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market

Europe, South America,North America, Asia

Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1

50mm 40 degree Led Glass Lens Drawing:

High Bay Light LED Glass Lens , Metal Holder COB LED Lens 50mm 40 Degree

50mm 40 degree Led Glass Lens Distribution:

High Bay Light LED Glass Lens , Metal Holder COB LED Lens 50mm 40 Degree

Related Glass lens:

Model No. Lens angle Lens Dimensions Match Led

SOE-HB50-40

 40° D50mm*H28mm 10-100W

SOE-HB50-90

 90° D50mm*H24mm 10-100W

SOE-HB60-35

 35° D66mm*H48mm 10-100W

SOE-HB60-60

 60° D66mm*H34mm 10-100W

SOE-HB60-90

 90° D66mm*H17mm 10-100W

SOE-HB78-45

 45° D78mm*H44mm 10-100W

SOE-HB78-60

 60° D78mm*H40mm 50-200W

SOE-HB78-90

 90° D78mm*H35mm 50-200W

SOE-HB78-120

 120° D78mm*H26mm 50-200W

SOE-HB100-60

 60° D100mm*H39mm 50-200W

SOE-HB100-90

 90° D100mm*H35mm 50-200W

SOE-HB100-120

 120° D100mm*H33mm 50-200W

SOE-HB109-120

 120° D109mm*H33mm 50-200W

SOE-HB130-110

 110° D130mm*H35mm 50-300W

Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability

Led glass lens Applications:

It is used for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.

High Bay Light LED Glass Lens , Metal Holder COB LED Lens 50mm 40 Degree
