78mm Round Glass LED Lens For CXA 3070 , 60 Degree LED Projector Lens
78mm Round Glass LED Lens For CXA 3070 , 60 Degree LED Projector Lens
78mm Round Glass LED Lens For CXA 3070 , 60 Degree LED Projector Lens
78mm Round Glass LED Lens For CXA 3070 , 60 Degree LED Projector Lens
Specifications
Brand Name :
Sollente
Model Number :
SOE-HB78-60
Place of Origin :
China
MOQ :
10 sets
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Delivery Time :
3-14 working days
Packaging Details :
Carton Box
Product Name :
78mm Round Led Glass lens for CXA 3070 , 60 degree led projector lens
Diameter :
78mm
Height :
40mm
Beam Angle :
60 degree
Match Led :
10-100W
Material :
Optical Grade High Borosilicate Glass
Working Temperature :
-50 to 55 °C
Transmittance :
91.6%
Accessories :

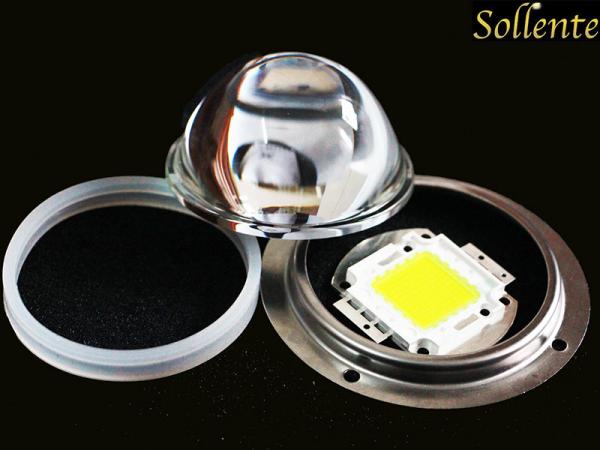

Lens, Gasket, Metal Holder
Description

78mm Round Led Glass lens for CXA 3070 , 60 degree led projector lens

Quick Detail:

1. Dimension: Dia 78mm Height 40mm

2. Beam Angle: 60degree

3. Match Led: 10-100w LED COB

4. Materials : Borosilicate glass

5. Accessories: Metal holder, silicon gasket

6. Chips Package size < 53mm

7. Application: Led high bay light, Flood light, Flashing light, Led Spot Light

Specifications:

Product Model

 SOE-HB78-60 Product specification Φ78mm*H40mm

Luminous angle

 60° Luminance distribution 10~100W

Material

 High borosilicate3.3 Transmittance 92%

Temperature resistance

 -50℃~+520℃ Tolerances ±0.1mm

Product applications

 High Bay Lights, Flood Lights, Industrial Light, Factory Light

Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1

60degree Led Glass Lens Drawing:

78mm Round Glass LED Lens For CXA 3070 , 60 Degree LED Projector Lens

60degree Led Glass Lens Distribution:

78mm Round Glass LED Lens For CXA 3070 , 60 Degree LED Projector Lens

Related Glass lens:

Model No. Lens angle Lens Dimensions Match Led

SOE-HB50-40

 40° D50mm*H28mm 10-100W

SOE-HB50-90

 90° D50mm*H24mm 10-100W

SOE-HB60-35

 35° D66mm*H48mm 10-100W

SOE-HB60-60

 60° D66mm*H34mm 10-100W

SOE-HB60-90

 90° D66mm*H17mm 10-100W

SOE-HB78-45

 45° D78mm*H44mm 10-100W

SOE-HB78-60

 60° D78mm*H40mm 50-200W

SOE-HB78-90

 90° D78mm*H35mm 50-200W

SOE-HB78-120

 120° D78mm*H26mm 50-200W

SOE-HB100-60

 60° D100mm*H39mm 50-200W

SOE-HB100-90

 90° D100mm*H35mm 50-200W

SOE-HB100-120

 120° D100mm*H33mm 50-200W

SOE-HB109-120

 120° D109mm*H33mm 50-200W

SOE-HB130-110

 110° D130mm*H35mm 50-300W

Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability


Led glass lens Applications:

It is used for High bay and low bay lighting , Applicate for Industrial factory, warehouse, stadium, hypermarket, supermarket and other indoor environments.
