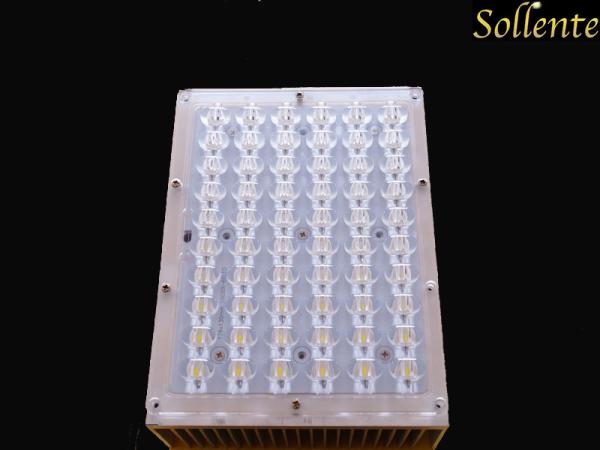

High Power Pole Light LED Retrofit Kits For 60W LED Road Lamp Replacement
High Power Pole Light LED Retrofit Kits For 60W LED Road Lamp Replacement
High Power Pole Light LED Retrofit Kits For 60W LED Road Lamp Replacement
High Power Pole Light LED Retrofit Kits For 60W LED Road Lamp Replacement
Specifications
Brand Name :
Sollente
Model Number :
SOE-SL60W-LM60x120
Place of Origin :
China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
10000 pcs / week
Delivery Time :
6-14 working days
Packaging Details :
Carton Box
Product Name :
LED Street Light Retrofit Kit For 60w Led Road Lamp Replacement
Lens Size :
L200*W150*H11.6mm
PCB Size :
L179.5*W131.5*H2mm
Beam Angle :
60x120 degree
Match Led :
Bridgelux 45mil chip Led
Material :
Optical Grade PC
Efficiency :
91%
PCB circuit :
10 series 6 parallels
Led voltage :
3-3.6V
Lumen :
160-170 lm/W
Led current :
300-350mA
Description

LED Street Light Retrofit Kit For 60w Led Road Lamp Replacement

Quick Details:

1. Dimension: L200*W150*H11.6mm

2. Beam Angle: 60x120 degree

3. Match Led: High power led , K2 , P4

4. Materials : Optical Grade PC, Aluminm

5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, Led driver

6.Efficiency: >91%

Specifications:

Product Name Led Street Tunnel Light Modules 28W With 70x70 degree Optical lens
Model No SOE-SL28W-LM70X70
Main parts 28W Lens+ Silicone gasket + AL PCB mounting leds + LED driver (Meanwell Led driver is available)
Lens Material PC Optical
MOQ 1pcs
Lens size L200*W150*H11.6mm
PCB Size L179.5*W131.5*H2mm , PCB could design as clients reuqest
Driver enclosure plastic or aluminum case for choice

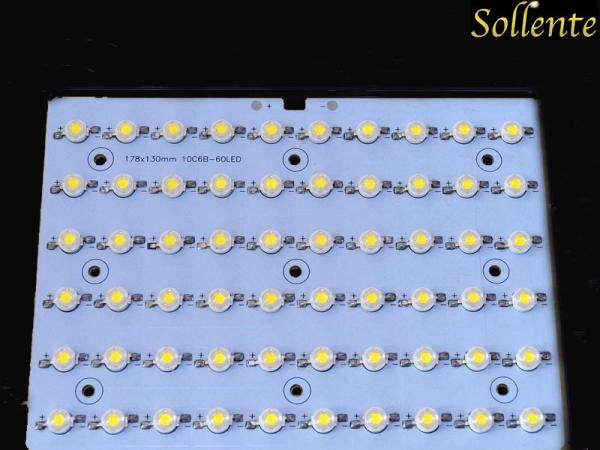

PCB Circuit

10 series 6 parallel
Led details 3-3.6V , 160-170 lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America

60W Led Street Light Kits Drawing:

High Power Pole Light LED Retrofit Kits For 60W LED Road Lamp Replacement

60W Led Street Light Kits Distribution:

High Power Pole Light LED Retrofit Kits For 60W LED Road Lamp Replacement

Features :

  1. This SKD 60W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps.
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 60 Celsius degree.
  5. Optic lenses are available for projects that need smaller beam angles, like 70x140 degree , 65x135 degree.

Competitive Advantage:

1). Our High power led using high quality imported Bridgelux 45mil Led chip with LM-80 test.
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty

Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on

Our Services:

1. Your inquiry will be replied by professional sales in 8 hours.

2. OEM & ODM are welcomed, OEM brand is available.

3. Distributorship is offered for your unique design and some our current models.

4. Protection of your sales area, ideas of design and all your private information.

5. 2 years warranty.

6. Provide you the lowest freight cost and the fastest service.

7. Professional engineers to design and develop new led street light components according to your requirements.

8. we can design the color boxes for you when you have larger quantity.

9. we can use your logo and label on products.
