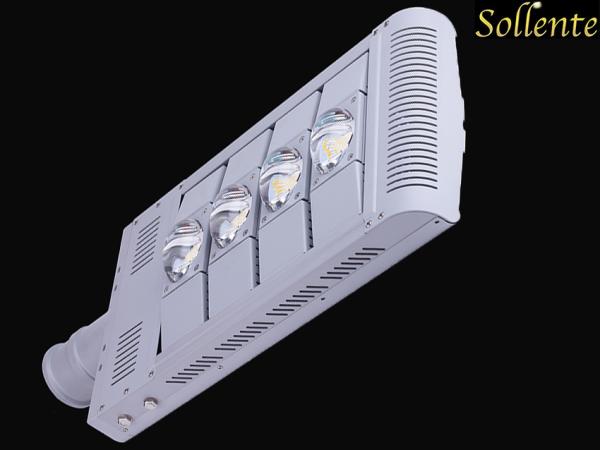

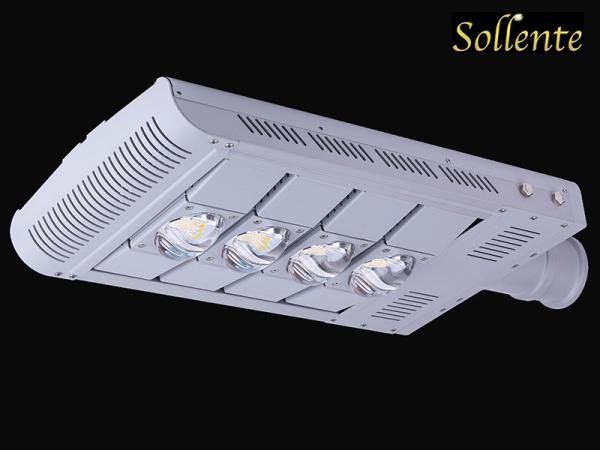

No Strobes 120 Watts COB Led Modules With Anti corrosion Aluminum Housing
No Strobes 120 Watts COB Led Modules With Anti corrosion Aluminum Housing
No Strobes 120 Watts COB Led Modules With Anti corrosion Aluminum Housing
No Strobes 120 Watts COB Led Modules With Anti corrosion Aluminum Housing
No Strobes 120 Watts COB Led Modules With Anti corrosion Aluminum Housing
No Strobes 120 Watts COB Led Modules With Anti corrosion Aluminum Housing
Specifications
Brand Name :
Sollente
Model Number :
SOE-SL120W-DA
Place of Origin :
China
MOQ :
1 sets
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
10000 pcs / week
Delivery Time :
7-16 working days
Packaging Details :
Carton Box
Product Name :
No Strobes 120 Watts COB Led Modules With Strong Anti-corrosion Aluminum Housing
Dimension :
625*310*89mm
Input Voltage :
AC85-277V
Match Led :
3030, Lumileds, Osram
Material :
Borosilicate Glass, AL
Working Temperature :
-35℃ +55℃
Efficiency :
>90%
Beam angle :
150x75 degree
IP Grade :
IP67
Warranty :
3 Years
Description

No Strobes 120 Watts COB Led Modules With Strong Anti-corrosion Aluminum Housing

Series:street light /IP 67

lumen100-120Lm /W

size: 625*310*75
CRI: ≧70Ra,

LED Chip:LUMILED /OSRAM

LED Qty:SMD3030 192pcs

Material:AL

Input Voltage: AC100-277V,

Warranty 3 years

Beam Angle: 150°x70°

Model Input Voltage Lamp Bead System consumption LED luminous efficiency

Color Temperature

SOE-SL120W-DA

 AC85-277V Lumileds, Osram 120W 100-120lm/W 3000-6500K

CRI

 Lamp’s efficiency Ambient temperature Working life-span IP Grade

Ra≥70

 >90% -30°C- +55°C >50000H IP67

Connect wire

 CTN size N.W. G.W. Color of Lamp Housing
Brown L Blue N Yellow E 67x36x17cm 7.3KG 8.1KG Grey

120 watts COB street light

Industry Leading heat dissipation design

Adopt AL6063 aluminum housing.

Perfect air exchange for modules. Effective but low cost production for competitive pricing.

Premium Led modules

Various LED modules compatible.

Efficient light source with wide range beam angle lens optional. Module based waterproof and heat dissipation lead to reliable performance.

Unique elegant appearance

Cutting edge design for convenient maintenance. Easy installation and replacement for modules and drivers.

Waterproof Led Driver

Meanwell or owe-developed premium LED driver optional.

High efficiency, long life span, Anti-thunder and electric surge protection.

Excellent Design

High brightness, energy saving, no strobes, no radiation, safe and environmental protection, no harm to people. Long life span, up to 50000 hours.

It is also reliable when working in low voltage. Aluminum housing for strong anti-corrosion.

Led modules have integrated with core functions of light distribution, heat sink and water resistance. It make the streetlight easy for maintenance. The part replacement and installation can be operated with super high efficiency, saving much labor work.

Distribution:

No Strobes 120 Watts COB Led Modules With Anti corrosion Aluminum Housing

We offers an innovative, completely protected (IP67) module for street lighting that facilitates extremely short luminaire development cycles.

The sophisticated reflector concept thus ensures lighting that complies with standards, with a high quality of light and high efficiency as well as a future-proof platform for further improvements in LED technology.

Product benefits

Broad light distribution spectrum

Good luminous efficacy

High quality of light by means of low glare, no light spill

Very effective thermal management thanks to uniform heat dissipation

Overtemperature protection

Application:

The design of Street Light Module joins LED and IP67 water/dust proof. It takes advantage of energy saving and oval view angle, and adapts to different requirement of street lighting, like 30w, 60w, 90w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket, Apply to street light and solar street light, Tunnel Light, Gas station Light.
