107MM Optical Glass Lens Kit For 120W High Powe LED Street Lamp

Glass lens size:L107mm x W 86mm x H 33mm

Temperature: -30 to +200 degrees

Product Description: Non-spherical design

Viewing angle: 135x65 degrees

Light transmittance up 93%

Features: High brightness, Uniform Light, No dark shadows

Bracket length: 130mm

Bracket width: 101mm

Suitable Lighting Source: 20W 30W 50W 100W 120W High Power Led

Net Weight: 415g
Package:

1x 107mm glass lens

1xstainless steel ring

1x aluminum reflector

2x Silicone ring

Specifications:

Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1

Optical Grade High Borosilicate Glass, This material increases light transmittance through the lens compared to plastics and lower-quality glass.
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1

Led Glass Lens Drawing:

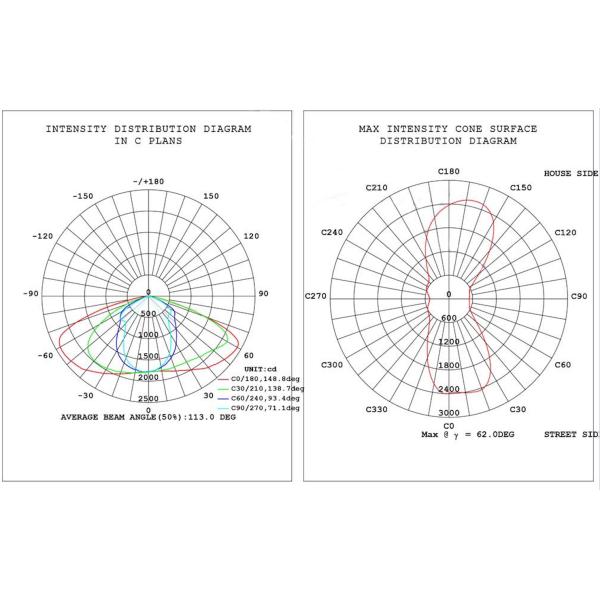

Distribution:

Related Glass lens:

Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability

Application:

It is used in the street light , high way led lamp , tunnel lamp , square lamp , road lamp, city lighting , parking spot lamp , scenery area and so on. It will be the best to replace traditional high pressure street light . It is also the best choice to retrofit the old HPS lamps as replacement .
