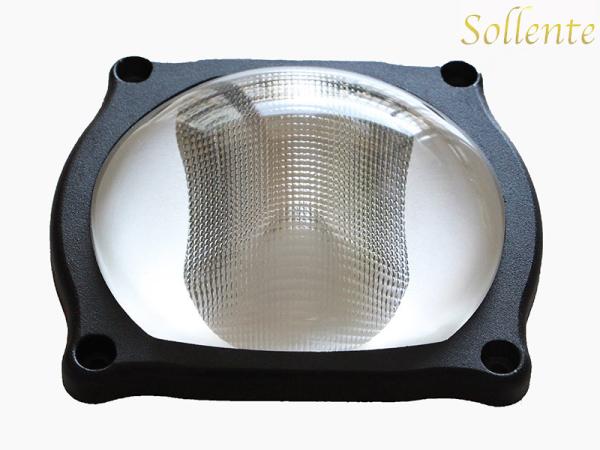

Led Glass lens for 30W to 150W Integrated Chip Led Street Light

Quick Detail:

1. Dimension: Dia 107mm Height 33mm

2. Beam Angle: 135x65 degree, Asymmetric

3. Match Led: 50-200w LEDs

4. Materials : Borosilicate glass

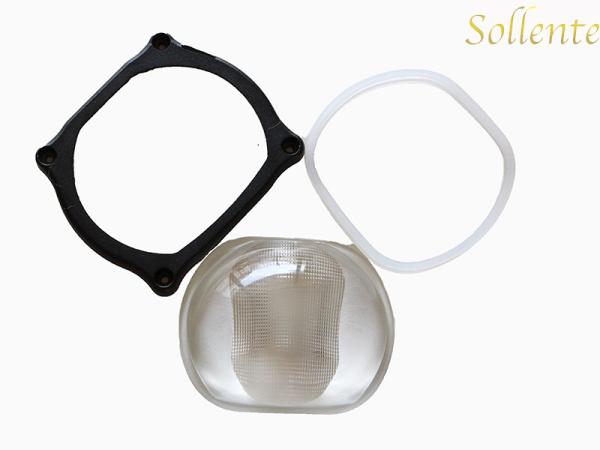

5. Accessories: Metal holder,silicon gasket

6. Chips Package size < 41mm

Specifications:

Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1

Led Glass Lens Drawing:

Distribution:

Related Glass lens:

Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years specializing in Led lens industry
2. Complete supplying system with full range of Products , from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Strong design and production capability

Application:

It is used in the street light , high way led lamp , tunnel lamp , square lamp , road lamp, city lighting , parking spot lamp , scenery area and so on. It will be the best to replace traditional high pressure street light . It is also the best choice to retrofit the old HPS lamps as replacement .

Material Details:
Optical Grade High Borosilicate Glass, This material increases light transmittance through the lens compared to plastics and lower-quality glass.
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
