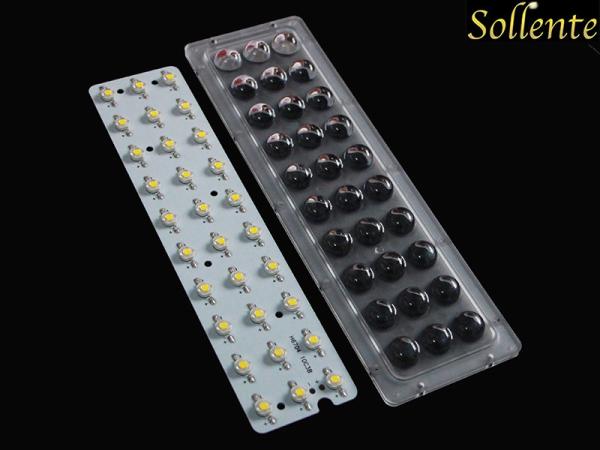

High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits
High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits
High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits
High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits
Specifications
Brand Name :
Sollente
Model Number :
SOE-SL30W-LM90F
Place of Origin :
China
MOQ :
10 sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
10000 pcs / week
Delivery Time :
3-14 working days
Packaging Details :
Carton Box
Product Name :
High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits
Lens Size :
L256.6*W78.6*9.1mm
Heat Sink :
L278*W74*H54mm
Beam Angle :
90 degree
Match Led :
Lumileds K2, Edison A-1 A-5 S5
Material :
Optical Grade PC
Efficiency :
91%
PCB circuit :
10 series 3 parallels
Led voltage :
3-3.6V
Lumen :
160lm/W
Description

High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits

Quick Details:

1. Dimension: L256*W78*7.1mm

2. Beam Angle: 90 degree

3. Match Led: Bridgelux leds, K2, Edison

4. Materials : Optical Grade PC, Aluminm

5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable

6. Efficiency: >91%

Specifications:

Product Name

High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits
Model No SOE-SL30W-LM90F
Main parts 30W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available
Lens Material PC Optical
MOQ 1pcs
Lens size L256.6*W78.6*9.1mm
PCB Size 233x55x1.5mm
Driver enclosure plastic or aluminum case for choice
PCB Circuit

10 series 3 parallel
LED details 3V , 350mA , 160lm/w
Certificate ROHS, SGS,CE
Quality guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market Europe , South America , North America , Asia

90degree Led Street Light Lens Drawing:

High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits

90 degree Led Street Light Lens Distribution:

High lumen Complete 3x10 LED Streetlight Module Led Light Retrofit Kits

Features :

  1. This SKD 30W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 60W , 90W and so on .
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. Optic lenses are available for projects that need smaller beam angles, like 90x90 degree, 87x134 degree , 70x155 degree

Related High power Led Street Light Lens:

Model No. Lens angle Lens size(L*W*H) PCB size(L*W*H)

SOE-SL30W-LM87X134

 87X134° 250x74x9.6mm 228x53x1.5mm

SOE-SL30W-LM90X90

 90x90° 250x74x9.6mm 229x53x1.5mm

SOE-SL30W-CR120

 120° 250x74x9.6mm 229x53x1.5mm

Competitive Advantage:

1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.

Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on

Product benefits
Wide range of light distributions
High luminous efficacy
High quality of light thanks to low glare, no scattered light
Fast time to market thanks to easy design-in
Very effective thermal management thanks to uniform heat dissipation
