Waterproof IP 67 100W DC24V Led Street Light , 150x80 Degree Road light Module
Waterproof IP 67 100W DC24V Led Street Light , 150x80 Degree Road light Module
Waterproof IP 67 100W DC24V Led Street Light , 150x80 Degree Road light Module
Waterproof IP 67 100W DC24V Led Street Light , 150x80 Degree Road light Module
Specifications
Brand Name :
Sollente
Model Number :
SOE-SL100W-DB
Certification :
Rohs
Place of Origin :
China
MOQ :
10 sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
10000 pcs / week
Delivery Time :
3-14 working days
Packaging Details :
Carton Box
Product Name :
Good Heat Dissipation Waterproof IP 67 100W DC24V Led Street Light
Lamp size :
L464*W310*H89mm
Beam Angle :
150x80 degree
Match Led :
Lumileds 3030 SMD , Osram
Material :
Optical Grade PC
Efficiency :
91%
PCB circuit :
8 series 8 parallels
Led voltage :
3-3.4V
Led Current :
350mA
Description

Good Heat Dissipation Waterproof IP 67 100W DC24V Led Street Light

Quick Details:

1. Dimension: L464*W310*H89mm
2. Beam Angle: 150x80 degree
3. Match Led: SMD3030
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Lamp with Led driver
6. CRI: 70 or 80


Specifications:

Model Input Voltage Lamp Bead System consumption LED luminous efficiency Color Temperature

SOE-100W-DB

 DC24V Lumileds, Osram 100W 100-120lm/W 3000-6500K
CRI Lamp’s efficiency Ambient temperature Working life-span IP Grade
Ra≥70 >90% -30°C- +55°C >50000H IP67
Connect wire CTN size N.W. G.W. Color of Lamp Housing
Brown L Blue N Yellow E 52x36x17cm 5.1KG 5.6KG Grey

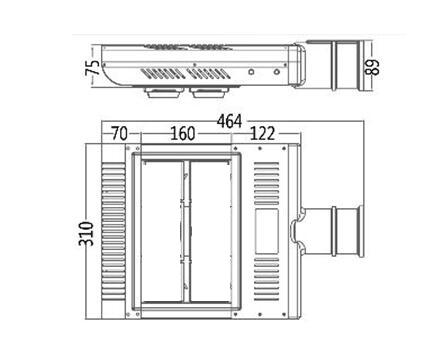

100w Lamp Drawing:

Waterproof IP 67 100W DC24V Led Street Light , 150x80 Degree Road light Module




Led waterproof driver IP65 or IP67

Optional brands of Led driver, detached design of power supply. The isolating switching power supply, low voltage output, low harmonics, no strobe, high efficiency, ling life-span.

Industry Leading heat dissipation design

Adopt AL6063 aluminum housing, IP67. Simple but original design, which ensures excellent ventilating effect, corrosion and wind resistance.

Unique elegant appearance

A new design concept about a conventional breakthrough in housing, for offering highly integration solving solution.

Modularization led streetlight High lumens

Screw fixed design in lamp base

Design with air holes for heat dissipation

Stable color temperature, high CRI, high Lumens

Adopt first-class brand Leds, high lumens and low thermal resistance. Optional led brands, such as Osram, Lumileds, Cree. Optical light distribution, no glare, no light pollution, high uniformity.

Adopt excellent technology in optical lens

To achieve super high lumens, elegant appearance and IP67

Excellent Design

Adopt high brightness LEDs, energy saving, no strobes, no radiation, safe and environmental protection, no harm to people. Long life span, up to 50000 hours. Impact and shock resistance, no UV and IR radiation. It is also reliable when working in low voltage.

Using aluminum housing and strong anti-corrosion, waterproof, dust-proof. With oxidation treatment on the surface of the radiator, it is durable and impact-resistant. The integrative structure simplify the spot wiring, it's more easy for installation and maintenance. Sealing parts are made of silicon rubber, which keeps oil-resistant, acid-resisting, alkali-resisting and heat-resistant.




Production Line

Company has an experienced team of optical design, optical lens product line include world's top Toshiba nano machining center UVM - 450, the United States and Britain FORMTAIYSURF measuring system AMETEK preci - tech company Nanoform250 UltraGrind 4 axis single-point stone of stainless steel precision lathe, precision CNC electric precision injection molding equipment.

Reflow soldering machine and AOI quality testing equipment, wave soldering, cutting foot machine, microwave cleaning machines, dryers, plastic sealing machines and other professional prodction Line for Led Modules assembling.

OEM

We can design and make the new mold lens and new Aluminium PCB according to customer's request and design. Customers are satisfied with the light effection for the new molds.

In order to keep product with high quality, All of our Led modules use import raw material, like Opticial lens with PC matierail Tenjin. For High power Leds, we use 45mil Bridgelux chip with original package and low attenuation. Also we use imported Led, like Cree XTE, XPE, XPG, Osram DURIS® S 5, Lumileds LUXEON 3030 2D.

RD

Over 3 teams form our design department, with rich experience in the areas of optics, thermodynamics, industrial design, electrical engineering, information engineering, the arts, ect.
