Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing
Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing
Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing
Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing
Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing
Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing
Specifications
Brand Name :
Sollente
Model Number :
SOE-HB234-90
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
10 sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
10000 pcs / week
Delivery Time :
7-14 working days
Packaging Details :
Carton Box
Product Name :
90 degree Led Industrial Light SMD Modules With AL6063 Aluminum Housing
Lens Size :
Dia263.9mm x H9.38mm
PCB Size :
Diameter 234mm
Beam Angle :
90 degree
Match Led :
3030 SMD , OSRAM S5, Lumileds 2D
Material :
Optical Grade PC
Efficiency :
91%
PCB circuit :
6 series 39 parallels
Led voltage :
6 V/W
Heat Sink :
Dia 314 x H130mm
Description

90 degree Led Industrial Light SMD Modules With AL6063 Aluminum Housing

Product Name Model Beam Angle Dimension
234 in 1 lens SOE-HB234-90 90° Φ263.9 x H9.38mm
234 in 1 PCB SOE-HB234-90 Φ234 x H1.6mm
Gasket SOE-HB234-90 Φ243.39 x H3.4mm
Heatsink SOE-HB234-90 Φ314 x H130mm

High bay and low bay lighting Application:

Industrial factory,

warehouse,

stadium,

hypermarket,

supermarket

and other indoor environments.

Product combined with Geometric Surface Design,High light efficiency;
On the basic character of 3030 series light, show the application of
the Combination of optical and construction.

234 in 1 Lens Drawing:

Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing

PCB Drawing for 234 in 1 Lens:

Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing

PCB

LED type: 3030 SMD

LED quantity minimum: 234

LED quantity maximum: 234

Assembled MCPCB: yes

PCB shape: round

PCB size: ø 234 mm

MCPCB thickness: 1,6

PCB material: Aluminium

Distribution:

Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing

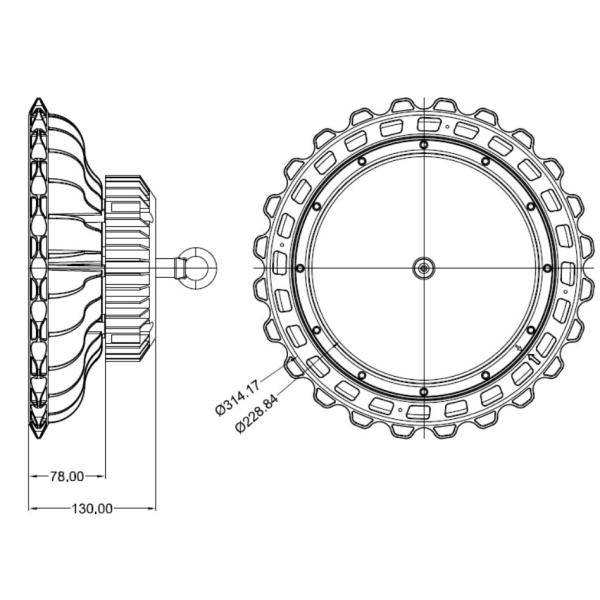

Heatsink Drawing: Diamter314.17mm

Industrial 90 Degree SMD LED Modules With AL6063 Aluminum Housing

Advantages

Excellent Design. Adopt high brightness LEDs, energy saving, no strobes, no radiation, safe and environmental protection, no harm to people. Long life span, up to 50000 hours. Impact and shock resistance, no UV and IR radiation. It is also reliable when working in low voltage.

Using aluminum housing and strong anti-corrosion, waterproof, dust-proof. With oxidation treatment on the surface of the radiator, it is durable and impact-resistant. The integrative structure simplify the spot wiring, it's more easy for installation and maintenance. Sealing parts are made of silicon rubber, which keeps oil-resistant, acid-resisting, alkali-resisting and heat-resistant.

1. Top grade waterproof rank : IP65

2. Long lifespan > 50,000 hrs

3. Low voltage, safe for human

4. Green Light, protect for environment

5. Low power consumption , high efficiency

6. Excellent heat output

Industry Leading heat dissipation design

Adopt AL6063 aluminum housing, IP65. Simple but original design, which ensures excellent ventilating effect, corrosion and wind resistance.

Unique elegant appearance

A new design concept about a conventional breakthrough in housing, for offering highly integration solving solution.

Led waterproof driver/ Mean Well driver:

Optional brands of Led driver, detached design of power supply. The isolating switching power supply, low voltage output, low harmonics, no strobe, high efficiency, ling life-span.

Packing and Shipping:

1. Express: Shipped by FEDEX/DHL/UPS/TNT

2. Air cargo: It takes about one week to arrive the destination.

3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.

4. Payment terms: TT, PayPal, Western Union

5. Lead time : Within 3-10 working days.

6. Bulk order Lead time :Within 5-10 working days.

7. Shipping port: Shenzhen/Yantian/Shekou

8. Packaging: Exported package, also can be customized according to customer requirements.
