80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
Specifications
Brand Name :
Suntech
Model Number :
SKL-7
Certification :
ISO9001
Place of Origin :
Ningbo, China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 PCS/Month
Delivery Time :
7-15days
Packaging Details :
Wooden Case
Name :
Aluminum Alloy Conductor Gripper
Item No. :
13221-13229A
Rated Load :
7-80KN
Applicable Conductor :
LGJ25-70~LGJ1120
Max.Open :
14-48mm
Weight :
1-18KG
Warranty :
1 year
Uses :
Apply to adjusting the sag and tensioning the conductor wire in power lines construction.
Feature :
Product is forged of high strength aluminum alloy with small size and light weight
Description

Aluminum Alloy Conductor Gripper Come Along Clamp For Transmission Line

Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,

Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,

Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric

power construction. At the same time, agents of various imported construction tools and power equipment.

Feature: product is forged of high strength aluminum alloy with small size and light weight
Configuration: Apply to adjusting the sag and tensioning the conductor wire in power lines construction.

Quick Information:

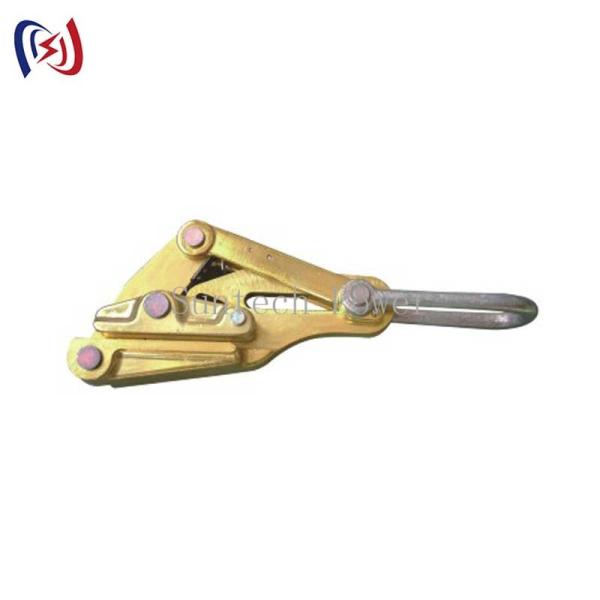

1) Aluminum alloy conductor gripper

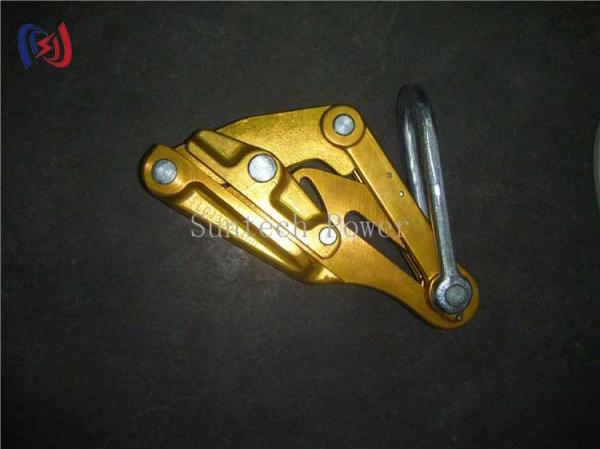

2) two types, one is with hook, pls find the photos

3) Apply for LGJ300-400 conductor

4) Max open 32mm

5) Donghuan brand

6) Transmission line stringing tools and accessories.

Aluminum Alloy Conductor Gripper Products

Item number Model (KN) Applicable Conductor (MM) (KG)
Rated Load Max Open Weight
13221 SKL-7 7 LGJ25-70 14 1
13222 SKL-15 15 LGJ95-120 18 1.4
13223 SKL-25 25 LGJ150-240 24 3
13224 SKL-40 40 LGJ300-400 32 4
13225A SKL-50C 50 LGJ500-630 36 6.6
13224A SKL-40A 40 LGJ400 32 4.3
13225 SKL-50A 50 LGJ500 34 7
13226 SKL-50B 50 LGJ630 36 7.3
13227 SKL-60 60 LGJ720 38 9.2
13228 SKL-70 70 LGJ900 42 14
13229 SKL-80 80 LGJ1000 45 18
13229A SKL-80A 80 LGJ1120 48 18
