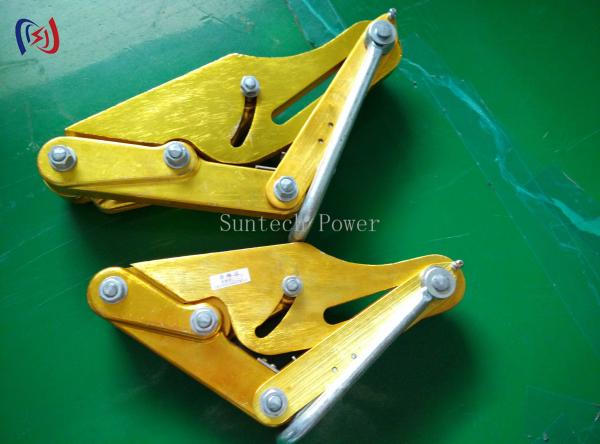

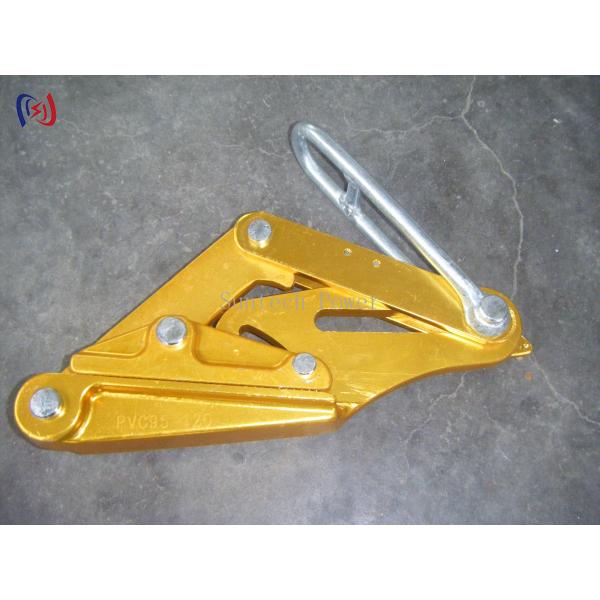

Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Specifications
Brand Name :
Suntech
Model Number :
SKJL-1
Certification :
ISO9001
Place of Origin :
Ningbo, China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 PCS/Month
Delivery Time :
7-15days
Packaging Details :
Wooden Case
Name :
Aluminum Alloy Insulated Conductor Gripper
Item No. :
13192-13214
Rated Load :
10-30KN
Applicabloe Conductor :
LGJ25-70~LGJ500-630
Applicable Wire Diameter :
10-14mm~32-37mm
Max.Open :
15-39mm
Weight :
1.4-5KG
Warranty :
1 year
Uses :
Product is clamping , fixing and adjusting the sag of insulated conductor.
Feature :
Product is made of high strength aluminum alloy with light weight, It will not damage the insulation layer.
Description

Aluminum Alloy Insulated Conductor Gripper Come Along Clamp Stringing Tools

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc

Application

Aluminum alloy conductor gripper,cable wire grips for different conductors is applied to adjusting sag in erecting wire and sagging.

The product is forged of high strength aluminum alloy, compact and light weight.

Speicifications

Item number Model Rated Load(KN) Applicable Conductor(LG) Applicable Wire Diameter(MM) Max Open(MM) Weight(KG)
13192 SKJL-1 10 25-70 Φ10-Φ14 15 1.4
13202 SKJL-1.5 15 95-120 Φ14-Φ20 22 3
13212 SKJL-2 20 150-240 Φ20-Φ25 27 4
13213 SKJL-2.5 25 300-400 Φ25-Φ32 34 4
13214 SKJLA-3 30 500-630 Φ32-Φ37 39 4
