Specifications
Brand Name :
Suntech
Model Number :
SH30J
Certification :
ISO9001
Place of Origin :
Ningbo, China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 PCS/Month
Delivery Time :
7-15days
Packaging Details :
Wooden Case
Name :
Ending Block
Item No. :
12191-12193
Ratel Load :
30-80KN
Sheave Diameter :
140-160mm
Sheave width :
36-56mm
Weight :
5.3-16.5KG
Warranty :
1 year
Uses :
Apply to tighten up conductor wire.
Feature :
Side plate can open and it is convenient for line consuruction.
Description

Ending Block Cable Pulley Wheel Silence Rotation Traction Wheel Single Block Pulley Rope

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

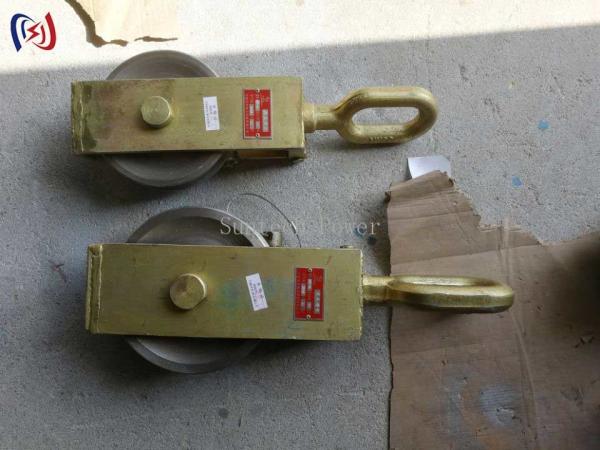

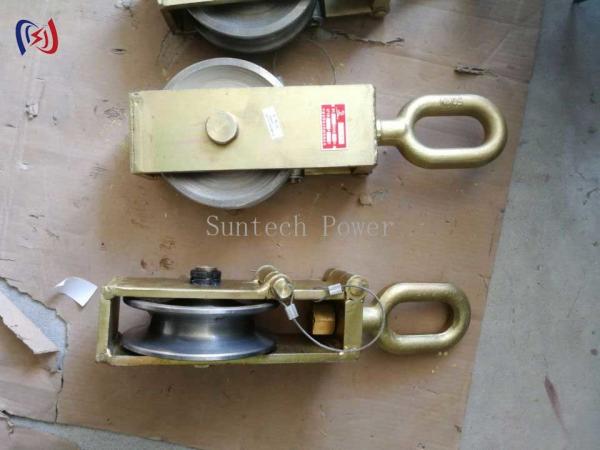

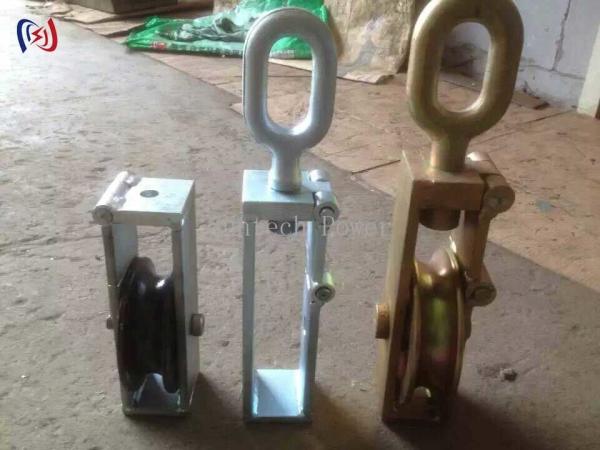

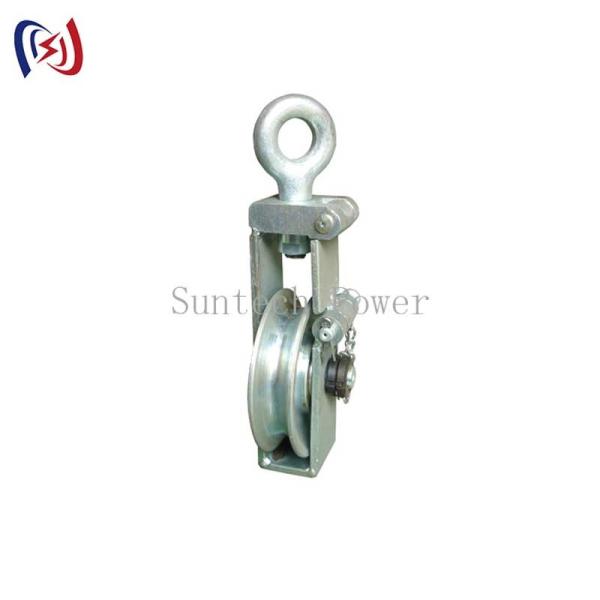

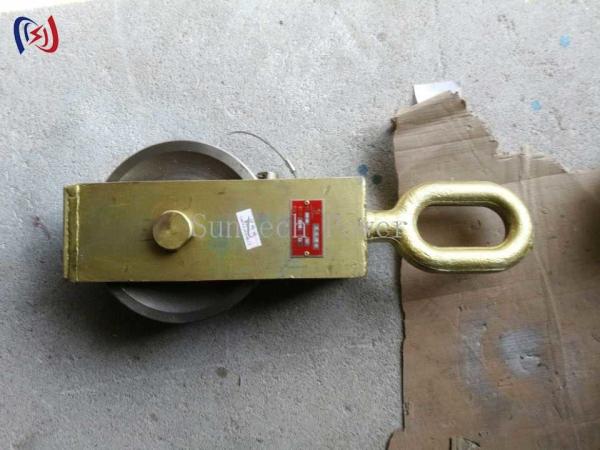

Stringing Tools Terminal Pulley Block, Ending Pulley block it is to tighten up conductor, the last pulley block's feture is the side board can open, it is convenient to construct.

Technical Parameters

Item number

12191

12192

12193

Model

SH30J

SH50J

SH80J

Rated load (kN)

30

50

80

Diameter of sheave (mm)

Φ140

Φ160

Φ180

Width of sheave (mm)

36

48

56

Weight (kg)

5.3

9.0

16.5
